Home > Products > cnc boring and milling machine > Large diameter CNC Planer Type Horizontal Boring& Milling Machine (CPBR-130/160)

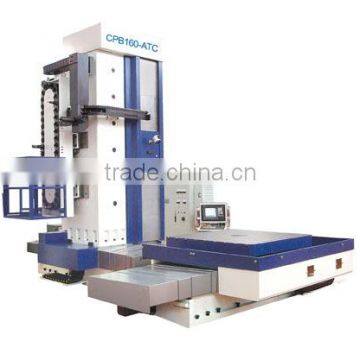

Large diameter CNC Planer Type Horizontal Boring& Milling Machine (CPBR-130/160)

FOB Price

USD $150,000 - $400,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	China
Brand Name	HHT	Model Number	CPBR130/160
Type	Horizontal	CNC or Not	CNC
Voltage	according to customer requirement	Power(W)	30/41KW
Weight	68000/85000kg	Certification	ISO/CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CPBR-130

Type	CNC Planer Type Boring& Milling Machine 130 (CPBR-130)
Spindle diameter		130mm
Diameter of milling spindle		221.44mm
Ram size		450×450mm
Spindle speed		10-1500r/min(optional 5-2000)
Spindle taper		ISO50 7:24
Power of Spindle motor		30/41KW
Spindle torque		3500Nm
Resisting force X Y Z B V W		30000N
Torque of milling spindle		3500Nm
Shank		JT50#
Pull stud		LDA-50D
Cross travel of table X		3000mm
Vertical travel of spindle head Y		2000mm(optional 2500;3000)
Longitudinal travel of column Z		1800mm(option)
Ram travel V		900mm
Axial travel of spindle W		800mm
Table rotation(any angle)B		360°
Table size		2000×2000mm
T-slots (W × space)		28×200mm
Max. load		20000kg
Rapid traverse X, Y, Z, V,W B		10000mm/min 6000mm/min 6000 1.5r/min
Feedrate X, Y, Z V,W B		1-6000 1-4000 0.005-1r/min
Positioning accuracy X, Y, Z ,V,W B		± 0.015 mm ± 0.025 mm ±5 ″
Repeatability accuracy X ,Y ,Z V,W B		±0.01 ±0.02 ±3″
CNC system		SIEMENS or FANUC
Weight		68000kg

CPBR-160

Type	CNC Planer Type Boring Milling Machine 160 (CPBR-160)
Spindle diameter		160mm
Diameter of milling spindle		240mm
Ram size		450×450mm
Spindle speed		10-1200r/min(optional 5-1500)
Spindle taper		ISO50 7:24
Power of Spindle motor		37/51KW
Spindle torque		4000Nm
Resisting force X Y Z B V W		50000N
Torque of milling spindle		4000Nm
Shank		JT50#
Pull stud		LDA-50
Cross travel of table X		4000mm
Vertical travel of spindle head Y		2500mm(optional 3000)
Longitudinal travel of column Z		1800mm(option)
Ram travel V		1000mm
Axial travel of spindle W		900mm
Table rotation(any angle)B		360°
Table size		2000×2500mm
T-slots (W×space)		28×200mm
Max. load		25000kg
Rapid traverse X, Y, Z, V,W B		10000 6000mm/min 6000 1.5r/min
Feedrate X, Y, Z V,W B		1-6000 1-4000 0.005-1r/min
Positioning accuracy X, Y, Z V,W B		±0.015 ±0.025 ±5 ″
Repeatability accuracy X ,Y ,Z, V,W B		±0.01 ± 0.02 ±3″
CNC system		SIEMENS or FANUC
Weight		85000kg

Our Services

a. Free installation and debugging

b. Free operator training

c. Free maintenance within 1 year

d. Long warranty and technology support

Payment Terms

a. 30% Deposit by TT before production and 70% payment by TT before shipment;

b. 30% deposit by TT before production and 70% L/C at sight before shipment;

c. 100% L/C at sight.

Our factory

Mother machine

Mother machine we use for our production,imported from Spain and Italy.

Packaging & Shipping

Wooden case & ocean shipping

Look for agents

Looking for agents worldwide

With years of development, we have entered into international market and gain good reputation for our machines.

In order to expand our business and bring benefits to our customers as well, our company now is looking for agents worldwide. We have got the agent in Venezuela.

Our company will offer much support for our agents, like discounts for purchasing machines, financial support for taking part in exhibitions, technical support and so on.

And if you have any requirements, please let us know. We will try our best to meet your requirements.

We are looking forward to establish long-term business relationship with you!

1. The Reasons For Choosing us:

a.Free installation and debugging

b.Free operator training

c.Free maintenance within 1 year

d.Long warranty and technology support

2.High Quality

The main parts of our machines are imported from Japan,Germany and USA.Some are made in Taiwan.

You are welcome to visit our factory.

3.Low Price

We make sure that for same price,our quality is much more excellent.

If you need more detailed information,please feel free to contact me as following:

Yangyang.Niu

Trademanager: cn1513256925

Skype: yangyang.niu
