Home > Products > Scaffolding caster > Scaffolding caster wheel with double brake for heavy duty 800kg

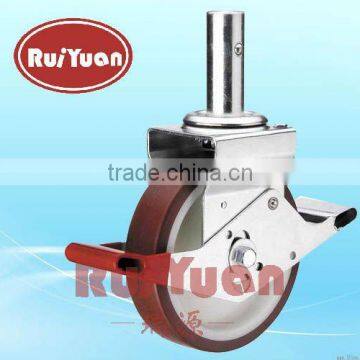

Scaffolding caster wheel with double brake for heavy duty 800kg
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ruiyuan | |
| Model Number | 32XXXPUNYS |
Product Description
| Technical Data | |
| Wheel diameter | 204mm |
| Width of Tread | 50mm |
| Size of Plate | 135x110mm |
| Plate hole centres | 105x77.5mm |
| Plate hole | 13.6x11mm |
| Offset | 40mm |
| Overall height | 243mm |
| Load capacity(static) | 800kg |
| Hardness of tread | A 95 Shore |
Head treated double ballrace with hardened steel balls make
The caster swivel smoothly under big load
PU coated brake pedal protect shoes well
Static load capacity can reach 800kgs.
Wheel:
PU on nylon wheel,plain bearing,
Nylon wheel,plain bearing,
PU hardness:-5+/-3 Shore A
We builds and manufactures scaffold casters and wheels, keeping your scaffolding units mobile. In addition to keeping the workflow rolling, scaffold casters may be equipped with brakes for solid non-rolling stability. Speak to a representative all sizes and requirements for filling your scaffold wheel and caster needs.
Scaffold Caster Options
Wheels for scaffolding are available in a variety of materials, including rubber on steel, rubber on cast iron, polyurethane on polyolefin, and phenolic.
Scaffold wheel foot operated brakes, engaging both swivel and wheel for optimum stability by using serrated upper brake shoe and curved lower brake.
For more information, contact The Rounya Caster Company, No.A1-2,1st Industrial Zone,529932 Phone:+86 (0) 13411317724: +86-662-2288280 Fax: +86-662-2288290
Website:
Please address reader service inquiries at the above address to:
Fenny chan, Sales Manager, Rounya Caster Company
E-mail inquiries to: info(at)
