high temperature and high filtration apparatus
- QINGDAO
- L/C D/P D/A
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | BAIRUIDA | |
| Model Number | GGS71 |
Product Description

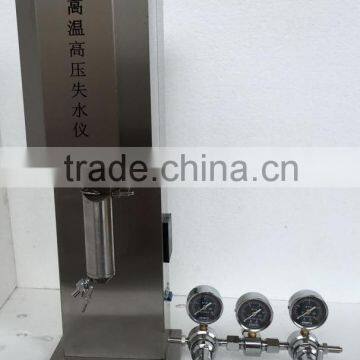

GGS71 high temperature and high pressure loss instrument is a simulation of drilling fluid and fluid loss grout deep (high temperature and pressure), the cake can be prepared at the same time and at high temperature and pressure state, after the formation of fluid loss. With high accuracy, repeatability error is small, simple, accurate test data and so on. Widely used in oil fields, research institutes, laboratories and other departments.
Second, the model and specifications
| No. | Models and Specifications | Name | Drilling Cup | Description |
| 1 | GGS71-A GGS71-B | High temperature and high pressure filtration apparatus | a blind hole drilling Cup b cup through hole drilling | Users may need to order different drilling fluid cup. |
The main technical parameters
| no | name | Technical Parameters |
| 1 | power supply | 220V±5% 50Hz |
| 2 | power | 1000w |
| 3 | Operating temperature | Room temperature to 232 ℃ |
| 4 | Working pressure drilling fluid Cup | 7.1MPa |
| 5 | The filtrate receivers back-pressure | 3.5MPa |
| 6 | Effective dehydration area | 22.6cm2 |
| 7 | Gas source | Nitrogen, carbon dioxide gas (not oil, water and other impurities) |
Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is a viscometer, filtration device, roller furnace, high-speed mixer, Viscosity detector and other professional production and processing company, has a complete and scientific quality management system. Integrity, strength and quality of products Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is recognized by the industry. Welcome friends to visit, guidance and business negotiation
Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd., founded in 2006, specializes in manufacturing series of oil slurry analytical instruments and accessories, which are widely used in major scientific research, oil drilling, oil and chemical additives in colleges.
I produced the high-quality products to meet domestic demand basis exported to many countries of the Sudan, Saudi Arabia, Iran, India and Uzbekistan.
Companies with a sound quality management system, and in accordance with API standard development and production of drilling fluids, completion fluids testing equipment.
Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is a viscometer, filtration device, roller furnace, high-speed mixer, Viscosity detector and other professional production and processing company, has a complete and scientific quality management system. Integrity, strength and quality of products Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is recognized by the industry. Welcome friends to visit, guidance and business negotiation
