Mystery 1/10 Brushless System 1/10 rock crawler HL-SL35A + 32T@1200KV (HL540S-3650M Motor) RC CAR

Use	Other, Vehicles & Remote Control Toys		Place of Origin	Guangdong, China
Brand Name	Mystery

Specifications

Mystery 1/10 Brushless System 1/10 rock crawler HL-SL35A + 32T@1200KV (HL540S-3650M Motor) RC CAR

Mystery 1/10 Brushless System 1/10 rock crawler HL-SL35A + 32T@1200KV (HL540S-3650M Motor) RC CAR

Mystery 1/10 Brushless System 1/10 rock crawler HL-SL35A + 32T@1200KV (HL540S-3650M Motor) RC CAR



Combo	ESC	Motor	Main Application
COMBO-B3	HL-SL35A	32T@1200KV (HL540S-3650M Motor)	1/10 rock crawler







1.Combo Inlcuded:
1.1 ESC: 1:10 SL 35A ESC

1.2 Motor: Sensorless 32T@1200KV (HL540S-3650M Motor)

1.3 Program Card: Yes
1.4 USB Adapter : No



2.The Specification of ESC:

2.1 Output : Cont.Current 35A, Burst Current 190A
2.2 Resistance : 0.0015 ohm
2.3 Suitable Car : 1/10 , 1/16 Car
2.4 Suitable Brushless Motor: 2S Lipo ≥9T (on-road)
2S Lipo ≥12T(off-road)
3S Lipo ≥12T(on-road)
3S Lipo ≥18T(off-road)
(3650-F Brushless Motor)
2.5 Battery Cell : 5-10 Cell Ni-xx(NiMH/NiCd) or 2-3 Cell Lipo
2.6 BEC Output : 6V/2A
2.7 Motor Type : Sensorless Brushless Motor
2.8 Dimension : 27*31*28mm(L*W*H)
2.9 Weight : 72.5g

3. The Specification of motor:

Model	KV	Diameter mm	Length mm (Without Shaft)	Shaft mm	Shaft Length mm	Weight g
32T	1200	35.8	50	3.17	15	165





4. Features:

4.1 Enhanced throttle response, excellent acceleration,strong brakes and throttle linearity

4.2 Using advanced software interface to set up or update the software or using programming card to make adjustments

4.3 Using programming card to program forward or reverse throttle limit

4.4 Using programming card to program braking percent

4.5 Multiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection and motor blocked protection

4.6 Compatible with NOVAK, LRP , ORION Sensored brushless motor

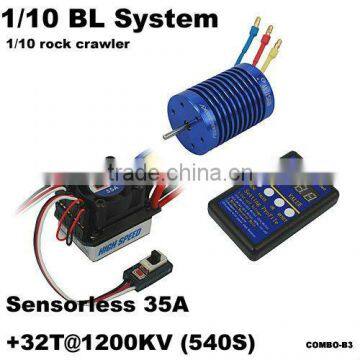

Packet content:

1x Fire Dragon SL35A Sensorless ESC

1x Fire Dragon Sensorless 32T@1200KV HL540S-3650M Motor

1x Program Card

100% brand new





1/10 BL System (Sensorless)
Combo	ESC	Sensorless Motor	Program Card	Main Application
COMBO-B1/MY-Car-351	HL-SL35A	13T@3000KV (HL540S-3650M Motor)	YES	1/12, 1/10 on-road racing for beginners
MY-Car-352	HL-SL35A	12T@3300KV (HL540S-3650M Motor)	YES
MY-Car-353	HL-SL35A	10T@3900KV (HL540S-3650M Motor)	YES	1/12,1/10 on-road racing for experienced drivers
COMBO-B2/MY-Car-354	HL-SL35A	9T@4300KV (HL540S-3650M Motor)	YES
COMBO-B3	HL-SL35A	32T@1200KV (HL540S-3650M Motor)	YES	1/10 rock crawler
COMBO-B4/MY-Car-601	HL-SL60A	5.5T@6000KV(HL540-3650 Motor)	YES	1/12,1/10 off-road racing for experienced drivers
COMBO-B5/MY-Car-602	HL-SL60A	8.5T@4000KV(HL540-3650 Motor)	YES
COMBO-B6	HL-SL60A	13.5T@2500KV(HL540-3650 Motor)	YES	1/12,1/10 off-road racing for beginners
COMBO-B7	HL-SL60A	17.5T@1900KV(HL540-3650 Motor)	YES
