Home > Products > Surveying > Marine construction survey mapping instrument of Hi-target VNet6 GNSS GPS

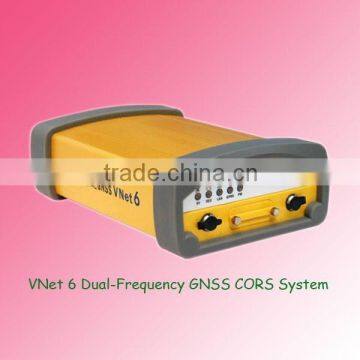

Marine construction survey mapping instrument of Hi-target VNet6 GNSS GPS
USD $0.1 - $0.2
/ Set
1 Set(Min.Order)
- Shanghai
- T/T Credit Card
You May Like
-
Precision Marine Surveying Instrument of K 10 GPS RTK GNSS RTK system
-
Hi-target K10 GPS RTK Convenient and efficient for data acquisition
-
High Precision Positioning GPS Receiver for marine surveying, land surveying
-
DGPS Positioning and Orientation with light weight K10 GPS RTK Split GNSS RTK Instrument
-
Host and Antenna Split Design of K9 RTK Location and Orientation Instrument for underwater positioning
-
Dual Frequency GPS GLONSS BDS Hi-target K 10 Split RTK Navigation Instrument
Product Details
| Type | Gps Navigator | Use | Automotive | |
| Screen Size | 2.5 inch | Function | Bluetooth-enabled, Mp3/Mp4, Photo Viewer, Radio Tuner | |
| Place of Origin | Chongqing, China | Brand Name | Hi-Target | |
| Model Number | VNet6 | Warranty | 12 Months |
Product Description
Hi-Target CORS System with Linux operation system for Monitoring and Marine construction
Product Description
MEASUREMENTS
• 220 Channels
• Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology
• High precision multiple correlator for GNSS pseudo range measurements
• Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response
• Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth
• Signal-to-Noise ratios reported in dB-Hz
• Proven Pacific Crest low elevation tracking technology
Satellite signals tracked simultaneously
GPS: Simultaneous L1C/A, L2C, L2E, L5
GLONASS: Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P
SBAS: WASS, MASA, EGNOS
Compass(BeiDou): Simultaneous B1, B22
POSITIONING PERFORMANCE3
Code Differential GNSS positioning
Horizontal: 25cm+1ppm RMS
Vertical: 50cm+1ppm RMS
SBAS differential positioning accuracy: typically<5m 3DRMS4
Static and Fast Static GNSS surveying
Horizontal: 2.5mm+0.5ppm RMS
Vertical: 5mm+0.5ppm RMS
Single-epoch dynamic resolution5
Horizontal: 2.5mm+1ppm RMS
Vertical: 5mm+1ppm RMS
Single Baseline<30km
Horizontal: 8mm+1ppm RMS
Vertical: 15mm+1ppm RMS
Networked RTK
Horizontal: 8mm+0.5ppm RMS
Vertical: 15mm+0.5ppm RMS
Initialization Time: Less than 30s Initialization Reliability: Over 99.9%
HARDWARE
Physical
Dimensions (L x W x H): 22.50cm x 13.80cmx 7.00cm(8.86 in x 5.43 in x 2.76 in)
Operating temperature: -40℃to +65℃ (-40℉ to +149℉)
Storage temperature: -40℃ to +80℃ (-40℉ to +176℉)
Weight: 1.0kg
Humidity: 100%, considering
Water/dustproof: IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
Electrical
Power 7-32V DC input
Power consumption 4 W
250 hours continuous work by 93Ah accumulator
I/O interface
5 x RS232 port, support meteorology equipment, clinometers and other sensor devices
1 x Ethernet port
1 x External clock port, support high precision atomic clock connection
4 x power input ports
1 x GSM antenna port
User interface
5 x Instructions LED
2 x Button
Web User Interface
Security
Optional HTTP login
Real-time stream authentication, SSL authentication
Multi-Level Access Control, allow 10 users access at the same time
COMMUNICATION AND DATA STORAGE
Data memory
Onboard memory: 1GB
External SD card: standard 4GB (max. 32GB)
Logging Rate: 1Hz,2Hz,5Hz,10Hz,20Hz (1Hz default)
Maximum Logging Rate: 50Hz (update required)
File Format: ZHD.RINEX.BINEX
File naming options: multiple
Data retrieval and transfer: Network Download
Data Management: Cycle storage
Communication
Ethernet: RJ45 jack, support HTTP, NTRIP, 10TCP/IP data stream at the same time 1GSM antenna port, for GPRS wireless communication
Wireless: GPRS/CDMA
Data formats
Correction Formats: CMR, CMR+,sCMRx,RTCM 2.1, RTCM 2.2, RTCM 2.3, RTCM 3.0, RTCM 3.1
Observables: ZHD, RINEX, BINEX
Position /Status I/O: NMEA-0183 V2.30
