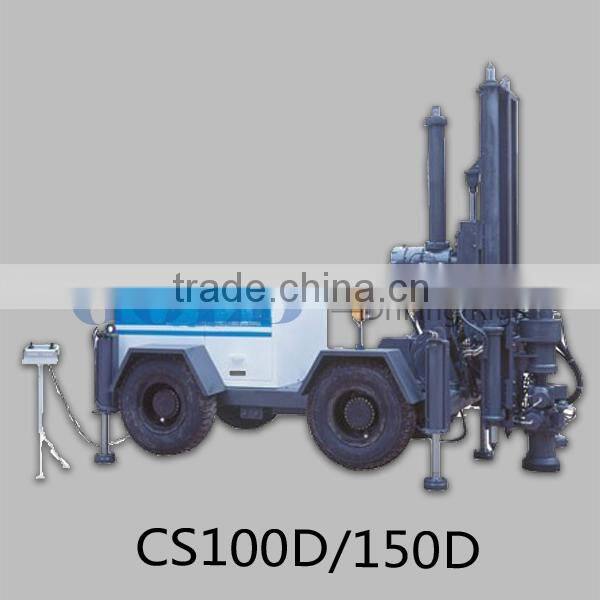

The CS100D/150D Ring-Shaped DTH Drill Rig

FOB Price

US$ 6,800 - 6,800 / Set

1 Set(Min. Order)

Port Chongqing Shanghai Qingdao Tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, dth hammer
Power Type	Diesel	Place of Origin	China
Brand Name	Gold	Model Number	CS100D
Usage	Other, construction	Power(W)	22 kw
Dimension(LWH)	385017802550	Weight	4800 kg
Certification	CE	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

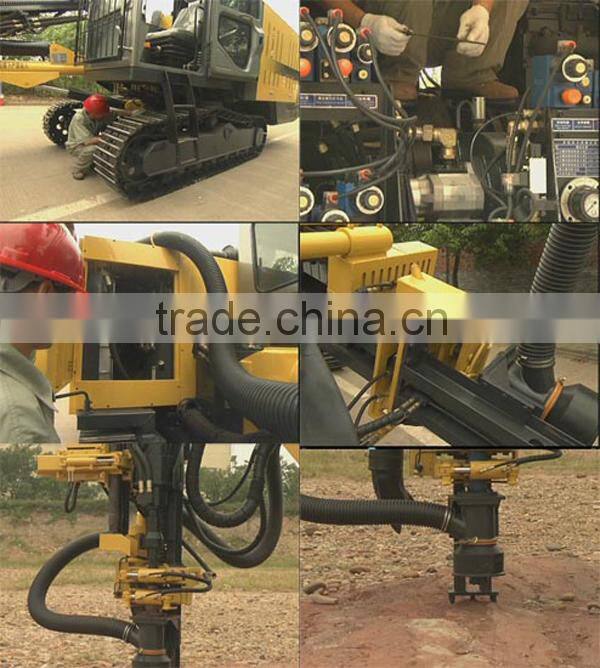

The CS100D/150D Ring-Shaped DTH drill rig is a new drill rig product developed by Hunan Nonferrous Heavy Machinery Co., Ltd for drilling operation in mines. In combination with the process characteristics of China’s underground mining, it integrates the hydraulic integration technology and PLC control technology, which enable the drill rig to be characterized by clear functional modules, advanced and reliable performance, harmonious human-machine relationship and excellent operation environment.

The drill boom of CS100D/150D Ring-Shaped DTH Drill Rig can pitch in the range of -10° to +70° in vertical plane and can rotate by 360°. It is able to drill various kinds of holes of any angles, with diameter of φ90 to φ185mm and depth of 60m, especially suitable to the drilling of ring-shaped holes in underground mines and to the blasting of high-pressure, large diameter and median depth holes.

Features

1)It is equipped with perfect drill frame displacement and positioning mechanism, which can perform all-directional rock drilling of range of 360°, thus featuring flexible operation and wide scope.

2)It adopts wheel chassis travel system, thus having large traction force and good slope-climbing ability.

3)Advanced hydraulic integration system is adopted, which greatly reduces the hydraulic pipeline structure and increases the system’s reliability.

4)It is equipped with advanced rod pickup and detachment and automatic road-blocking prevention mechanisms, which can ensure that the machine work efficiently.

5)The positioning and rock drilling of the rig can be performed on the movable platform, thus achieving remote and multi-directional operations.

6)Advanced PLC program-controlling technology is adopted, which can effectively realize the smart operation functions of the rig.

7)Each parameter can be stepless adjusted according to the rock conditions and drilling depth, with easy and convenient regulation and control, which can greatly increase the driving ability, smoothness, and anti-overloading ability of main mechanisms like rotation and propulsion.

Specification

Model Parameter		Unit	CS100D	CS150D	Remarks
Power of electric motor		KW	22	22
Control mode			Remote control	Remote control
Outline dimensions		mm	3850×1780×2550	3850×1780×2550	Except Bracket
Min. ground clearance		mm	300	300
Kerb weight		Kg	4800	4800
Drilling diameter		mm	90~ 127	138~ 185
Drilling depth		m	0~60	0~60
Drilling angle		°	-10~70	-10~70	Calculated by vertical basis
Diameter of drill pipe		mm	76	114
Length of drill pipe		m	1.5	1.5
Compensation stroke		mm	900	900
Travel way			Tire type or Hydraulic	Tire type or Hydraulic
Turning radius		°	360°	360°
Travel speed		Km/h	0~1.5	0~1.5
Climbing capacity		°	25	25
High gear	Rotary speed	r/min	64	64
	Turning torque	Nm	1170	1170
	Reverse torque	Nm	3700	3700
Low gear	Rotary speed	r/min	32	32
	Turning torque	Nm	1850	1850
	Reverse torque	Nm	2350	2350
