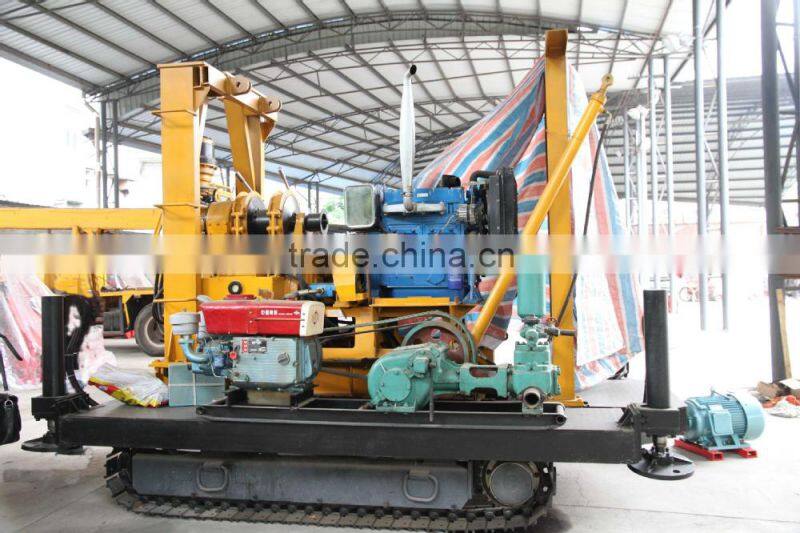

GX-1TDL Core Drilling Machine Of Spindle Type
- 100 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
-
Efficient core drilling rig especial for geological drilling of buildings and pile grouting hole drilling
-
mini rotary portable tunnel drilling rig KDY-30
-
Crawler type KW-200 water well drilling rig suitable for water supply projects in moutain area and rock stratum
-
KDY-30H Three Speeds Trunnel Drilling Rig
-
Depth 500m CE certification Quality ensure CD-2 drilling rig
-
MGJ-50L Diesel Power hot sale hydraulic crawler mounted reverse circulation drilling rig
Product Details
Condition | New | Type | Core Drilling Rig | |
Power Type | Diesel | Place of Origin | Chongqing, China | |
Brand Name | GOLD | Model Number | GX-1TDL | |
Usage | Other, core drilling machine | Voltage | 380V | |
Power(W) | 12KW | Dimension(L*W*H) | 2900*2090*6550mm | |
Weight | 2000Kg | Certification | ISO9001:2000 | |
Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
GX-1TDL drill rig derived from GX-1TD core drill rig, and it is a new kind of core drilling rig which includes the drill rig, crawler voluntary moving mechanism, boring tower, mud pump, control console and many other devices in one unit.
1. The new drilling rig is a kind of rapid migration,integrated and modular drill digging equipment,it is designed mainly for geological drilling consturction,such as the shallow holes,small hole spacing,and relocation of high frequency and so on.
2. Geotechnical drilling for railroad, highway, bridge, tunnel, hydropower station, civil and industrial buildings and blasting holes etc. and drilling for minerals, especial for where mobility and set up time are important.
Capacity | (Hole dia.) | Φ75 mm (¢75 mm) |
(Hole depth) | 30m | |
Drilling method | (Hard rock) | (Air DTH) |
(Soil) | (Basket bit or auger boring) | |
Max. torque | 700 N.m | |
Rated speed | 53 r/min | |
Stroke | 1700 mm | |
Max. pull and push force | 12 KN | |
Feed and hoisting speed | 0 – 0.254 m/s | |
Rated pressure of hydraulic system | 18 Mpa | |
Power unit | (EM195AN-1 diesel motor) | |
8.46 KW (Rated power 8.46 KW) | ||
Dimension (L×W×H) | 1740×1315×2820 mm | |
Weight | Total weight 420 kg (including power unit) | |
110 kg (Max. detachable weight 110 kg) | ||
Drilling tools | (Drill rod) | (¢42*1500mm with sunk joint) |
(DTH) | (¢70 DTH, ¢75 bit) | |
(Air compressor | (Air flow 3-4 cubic m./min) | |
(Air pressure 0.5-0.8 Mpa) |
Package: Wooden Case or Plywood
Shipping: within 10 working days after receival of deposit
Engineers available for overseas service of the machinery
Established in 2009.Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
