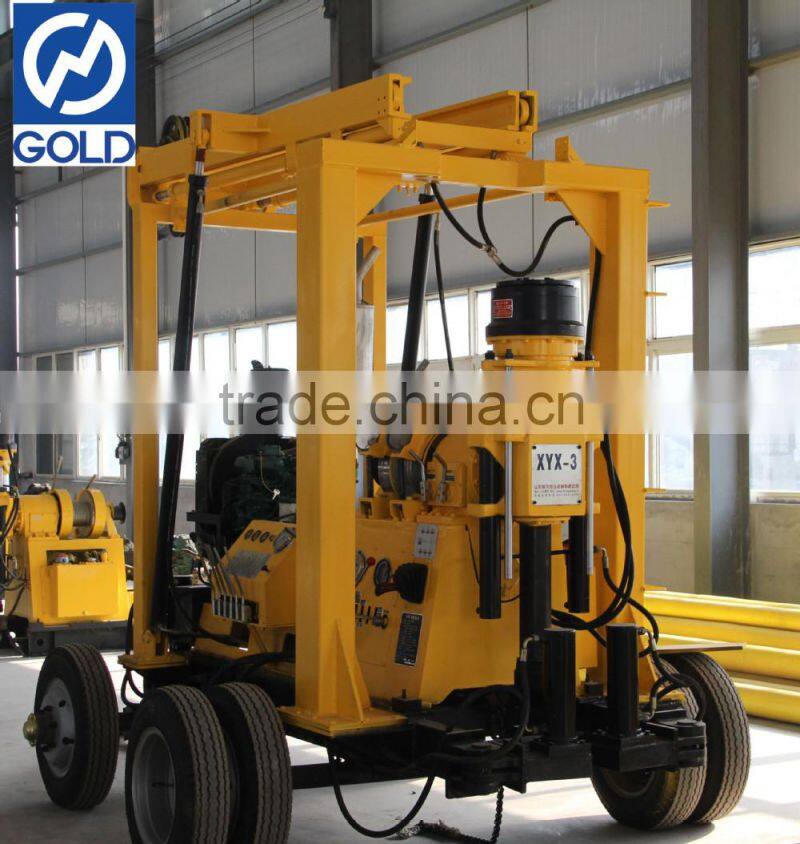

Efficient Hot Sale Trailer Mounted XYX-3 Subgrade Grouting Hole Drilling Rig With ISO Certificated
- Qingdao
 - T/T Credit Card

You May Like
-


GX-1TDL Core Drilling Machine Of Spindle Type
 -


Efficient Core Drilling Rig Especial for Geological Drilling of Buildings and Pile Grouting Hole Drilling
 -


Mini Rotary Portable Tunnel Drilling Rig KDY-30
 -


Crawler Type KW-200 Water Well Drilling Rig Suitable for Water Supply Projects in Moutain Area and Rock Stratum
 -


KDY-30H Three Speeds Trunnel Drilling Rig
 -


Depth 500m CE Certification Quality Ensure CD-2 Drilling Rig

Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Chongqing, China | |
| Brand Name | GOLD | Model Number | XYX-3 | |
| Usage | Other, geological exploration | Voltage | 380V | |
| Power(W) | 38kw | Dimension(L*W*H) | 4000*2100*2600mm | |
| Weight | 4500KG, 4500kg | Certification | ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Hot sale, efficient trailer-mounted drilling rig
Road & tall building foundation exploration
River levee and subgrade grouting hole drilling & grouting
Trailer type geological invistigation drilling rig
XYX-3
1.APPLICATION
XYX-3 drilling rig is mainly used in geological general investigation and exploration, road and tall building foundation exploration ,kinds of hole in concrete structure, river levees, subgrade grouting hole drilling and direct grouting, civil wells and earth temperature central air-conditioner,etc.
2.FEATURES
- Convenient for transport
- Hydraulic oil pressure feed device, high efficiency
- Flexible and reliable
- Diesel engine adopt the electric starter
3.SPECIFICATION
Drilling depth  | m  | 100  | 250  | 300  | 600  | |||||
Drilling DI  | mm  | 300  | 200  | 150  | 75  | |||||
Open hole DI  | mm  | 300  | ||||||||
End hole DI  | mm  | 75  | ||||||||
Drilling rod  | mm  | Φ60  | ||||||||
Drilling angle  |
  | 90°-65°  | ||||||||
Rotary Spindle forward  | ||||||||||
  | Spindle speed &nbs="center">r/min  | 30-1050  | ||||||||
Spindle reverse speed  | r/min  | 29-137  | ||||||||
Spindle stroke  | mm  | 560  | ||||||||
Spindle inner diameter  | mm  | 96  | ||||||||
Spindle lifting capacity  | KN  | 60  | ||||||||
Main Winch ( drive hydraulic system)  | ||||||||||
Single line lifting speed  | m/min  | 0-45  | ||||||||
Hug floodgate belt width  | mm  | 90  | ||||||||
Tightrope diameter  | mm  | 14  | ||||||||
Hoist single line lifting capacity  | KN  | 40  | ||||||||
Roller diameter  | mm  | 200  | ||||||||
Roller cubic measure  | m  | 30  | ||||||||
Gear Oil pump  | ||||||||||
Duplex gear oil pump CBF-F63/25  | ||||||||||
Front displacement,pressure  |
  | 63mL/r 20Mpa  | ||||||||
Behind displacement,pressure  |
  | 25mL/r 20Mpa  | ||||||||
Drilling rig Power  | ||||||||||
Diesel engine  | Hp  | R4105ZD 50HP  | ||||||||
Electric motor  | KW  | Y180L-4 22KW  | ||||||||
