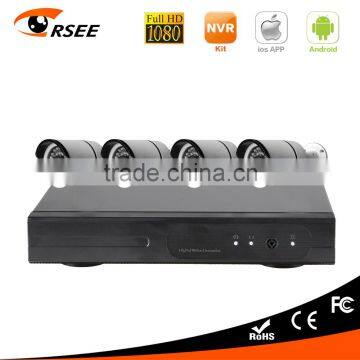

New product 4ch NVR kit with 1080P ip cameras home security system

NVR Specification

IP Video

Input

IP Video Input

4x1080P

Switch

Embedded,Centralized Power Supply

HDMI Output

1 CH HDMI Resolution:1920x1080P/60Hz

VGA  Output

1 CH VGA Resolution:1920x1080P/60Hz

Video
Resolution

Video Compression

H.264

Recording /Playback

1*1080P Playback

Video Resolution

720P,960P,1080P Recording

Frame Rate

PAL: 25 fps;NTSC :30 fps

Video Bitrate

256 Kbps -- 4.0 Mbps

Stream Type

Audio/Video, Variable Rate(VBR) , Constant Bit Rate(CBR)

Dul-Stream

Support

Audio Compression

G.711

Hard Disk

Storage Type

1 * SATA Interface

Storage Capacity

Max 4TB

Backup

USB Backup & Internet Backup , Support  FTP 4 upload

Interface

Network Interface

5*RJ45 100M Internet Interface

USB Interface

2 * USB2.0 Interface(Support Upgrade, Backup, Mouse)

PTZ

1 * RS485 Interface

Others

Network cable

4*18 meters

Temperature

 -10°~55°

Operation System

Embedded Linux Operation System

Soft Power-Off

Not Support

Device Control

Remote Control & Mouse

Power Input

DC15 V / 5A

IPC Specification

Technical Parameters

IPC quantity

4pcs

Sensor

1/4 Progressive Scan Sensor

Signal System

PAL/NTSC

Resolution

1080P  16 : 9 High Definition

Minimum illumination

Color: 0.1 Lux;  B/W: 0.01 Lux

Shutter

1/25s to 1/25,000s

Lens

4mm

OSD

Date Time & Title

White Balance

Auto

Day & Night

Auto / Color / BW

3D-DNR

Auto

Mirror/Flip

On / Off

Frame Specification

Three Streaming at the Same Time:
H.264 1280x720@30fps or below
H.264 640x480@30fps or below

S/N

> 39.1 Db

Interface

RJ45

General Specification

Anti-thunder Level

Standard IEC61000-4-5

Working Temperature/Humidity

 -10 °C to +50°C / 30% to 80% RH

Working Temperature/Humidity

 -20°Cto +60°C / 20% to 90% RH

Power Input

DC12V-1A

Power consumption

≤6W

Size

95 (L)×55(W)×45 (H)mm

Protection Level

IP66
