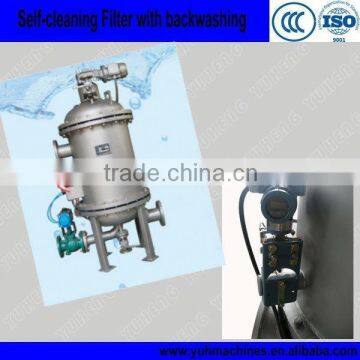

Automatic Self Cleaning Strainer/Activated Carbon Filter System

Specifications

  Automatic Self Cleaning Strainer/Activated Carbon Filter System

Standard specifications of the technical parameter table:

[Filtration Process] Liquid enter into the filter through inlet, part of the liquid enter into the filter directly from the lower end of the filtering element. Another part of the liquid from the intermediate shunt tube into the top of the filter, and then flows from the upper end of the filter element, liquid inflow at the same time from the filter element opening up and down,through the filter element inner surface in outlet collection. Particulate impurities were intercepted at the inner surface of filter element, accumulated into filter cake, to gradually increase the pressure differential between inlet and outlet,surface of the filter cake reaches a certain thickness, then the filter element flux decreases.

Applicable Typical Industries and Liquids
1.Applicable industries: Water treatment, steel, pulp and paper, mining, petro-chemical, machining, municipal, irrigation etc.
2.Typical applicable liquids: Groundwater, seawater, lake, reservoir water, pond water, cooling water circulation, frozen water, high and low voltage gush to drench water, squirt water, heat water, seal water, bearing cooling water, oil wells note water, process of circulating water, machining coolant, cleaning agents, cleaning water, etc.
3.Filtration function: Remove large particles, purify liquids, protect critical equipment
4.Filtration type: Back-flushing filter, automatic continuously online filtration

•   One Year Guarantee for whole machine.
•   24 hours technical support by email.
•   OEM is welcomed.
