RIK 5A Rogowski Integrator Kit

Offering an easy-to-install, plug-n-play solution for integrating flexible current transformers with 5A systems.

• Flexible rope-like current sensor, designed to easily fit into panels or busbars where space may be limited
• 0-5A rated output that works with any power meter or equipment with 5A nominal current transformer input
• Current sensing range from 2.5A to 50,000A to fit all systems
• Seven field-configurable CT ratios: 500A, 1kA, 2.5kA, 5kA, 10kA, 25kA, 50kA
• Individual CT ratios can be configured for each channel. Works in any single phase application with different current ratings
• Works in both 50Hz and 60Hz systems

The Accuenergy Rogowski Integrator Kit (RIK) provides users with an easy-to-install, plug-n-play solution to be used with any power meters or equipment with a 5A current transformer input. Meaning the RIK will allow for the installation of rogowski coil CTs in a variety of applications/configurations where spacial constraints may limit the use of other CT solutions.

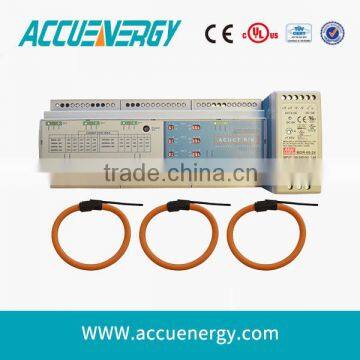

The RIK kit is designed around a three channel 5A output integrator and includes with it three Accuenergy Rogowski coil current sensors, and one power supply. All of these parts are further configurable for the needs of many applications.
