Home > Products > LED Products > 35mm*35mm led module 5050
35mm*35mm led module 5050
Negotiable
/ Piece
100 Pieces(Min. Order)
- tianjin/beijing/shanghai
- T/T Credit Card
You May Like
Product Details
| Model Number | LED module-LBY-5F12T3535-4CWF | Chip Material | Other, led module | |
| Emitting Color | Other, Red, yellow, blue, green, white | Power | Other, 0.84 | |
| Operating Temperature(℃) | -40, 60 | Place of Origin | China | |
| Brand Name | sign-in-china | Certification | CE |
Product Description

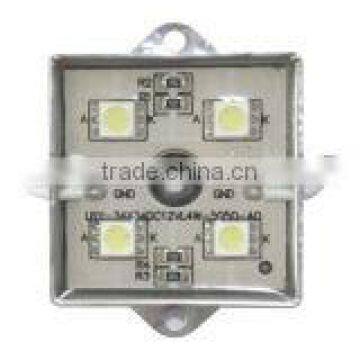

35mm*35mm 5050 Waterproof led module 5050
Item Code : LED module-LBY-5F12T3535-4CWF
12VDC operation. This waterproof led module strings. 3-7/8 inch wires between each modules. Each module has 4 wide viewing angle 120 degree high power 5050SMD LEDs. Metal shell design has 2 mounting screw hole and included double sided adhesive foam tape, it is more durable and long lasting.
Shell: Metal
Max power: 0.84W
LED Amount: 4LEDs
LED Type: 5050 SMD
Products Photos:
| Basic parameters | |||
| Color | Red, yellow, blue, green, white | LED type | 5050 SMD |
| LED Qty | 4PCS | Dimension | 1.4" x 1.4" (35 x 35mm) |
| Module interface | 2 x 4.0" (100mm) RVleads | Interface definition | Gray anode, white cathode |
| Cluster Qty | 20pcs | Module space between | |
| Weight | 0.4oz (10g)±5% | Lifespan | MTBF>50000hours |
| Environment parameters | |||
| Working temperature | -40°C∼60°C | ||
| Defend grade | IP65 competely satisfies the outdoor lighting standard | ||
| Electronic specifications | |||
| Working input voltage | D12V±5% | Max power | 0.84 W |
| Driving mode | Invariable voltage! (Insure every LED working under the invariable voltage) | ||
| Lighting capability | |||
| Luminous flux | 2.5floz (72lm) | ||
| Beam angle | 120° | ||
