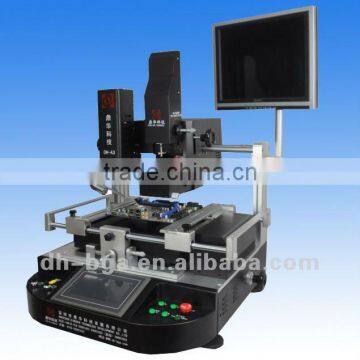

Mobile Phone PCB BGA rework station DH-A3

1.Embedded industrial computer , Windows systems, high definition touch screen interface , PLC control , power-on password protection and modify function , can display temperature curves 4-6 and store multiple sets of user data , and have instant curve analysis function. Real-time display set and actual temperature curve, and the curve analysis corrected.

2.To ensure that the heating effect and placement accuracy , the upper heater head and mounting head independently controlled and linear slide makes X, Y, Z -axis can be doing fine tuning or fast positioning ;

3. The machine uses three-zone independent temperature control , hot air down , bottom infrared, three independent temperature zone temperature , heating time, temperature , all curves displayed on the touch screen ;

4. High-precision K -type thermocouple closed loop control and automatic temperature compensation system , combined PLC and temperature module for precise control of the temperature , keeping the temperature deviation ± 2 degrees while the external temperature measurement interface precise detection of temperature and to achieve the accurate analysis of the measured temperature curve and proofreading .

5. PCB board positioning using V -shaped groove , positioning fast, convenient , accurate and meet the positioning of different ways and different PCB board layout size of the PCB .

6. Flexible and convenient removable universal fixture has protective effects on the PCB , PCB edge of the device to prevent injury and PCB deformation, and can adapt to a variety of BGA package size rework .

7. Equipped with a variety of specifications alloy nozzle , the nozzle can be rotated 360 degrees to locate , easy to install and replace ;

8. Adjustable high definition CCD color optical vision system , a spectral color, enlarge , fine-tuning, auto-focus , auto-correction . , And is equipped with automatic color resolution and brightness adjustment device . Manually / automatically adjust image sharpness.

9. X, Y axis and R angle with micrometer are fine-tuning the positioning accuracy of up to ± 0.01MM, and with high-definition LCD monitor, operating completely avoid human error .

10. 8 paragraph liter ( drop ) 8 segments constant temperature control, mass storage temperature curves, curve analysis can be carried out on the touch screen , settings, and correction ;

11. Configure Voice early warning  function in demolition, 5-10 seconds before the completion of welding operators for voice alerts relevant way to prepare ; while the demolition , after the welding is completed using a large flow cross-flow fan auto / manual for cool the PCB board , prevent the deformation of PCB board to ensure the welding effect.

12. Built-in vacuum pump , Φ angle of 60 ° rotation, micrometer precision fine-tuning nozzle placement , no air supply.

13. After CE certification, with emergency stop switch and automatic power-off protection device sudden accident

High definition display

Clear image can be clearly seen in the case of each solder joint

Precise optical alignment system optical alignment system of the machine clear image can be magnified up to 220 times the components, placement accuracy of up to + /-0.01mm.

And has a spectral color, zoom and fine-tuning, configuration 15  HD LCD display.

Optical imaging, BGA angle adjustment (BGA ANGLE ADJUST), 360-degree view BGA soldering, and to provide BGA rework success rate

Taiwan large area using heating panels, heat evenly,Prevent the deformation of PCB board.

Stent surface plating, with plenty of material to make the machine more stable and secure

Temperature line interface can be accurately measured BGA4 corners of the temperature curve

Using high-power cross-flow fan

PCB board quickly but, by preventing deformation of PCB board

The use of air leakage switch,your security escort
