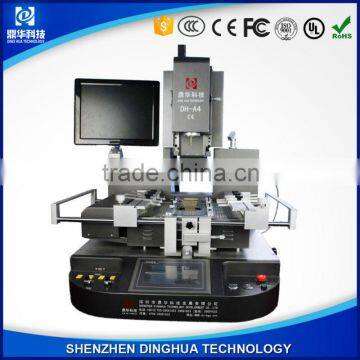

Dinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repair

FOB Price

USD $13,000 - $17,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Dinghua
Model Number	DH-A4	Voltage	AC220V±10% 50/60Hz
Current	35A	Rated Capacity	6800
Rated Duty Cycle	100%	Dimensions	L750W1020H1000 mm
Weight	91KG	Usage	pcb pick and place machine for Desktop Mobile
Certification	CE ISO2008 9001	After-sales Service Provided	Engineers available to service machinery overseas

Dinghua Manufacturer

-- Promote our machine, get big profit

-- You win, We win!

Dinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repair

DH-A4 Details and Warranty:

Warranty: Three years warranty for heater wires, one year for other parts of machine. (Two years longer than other companies)

1. Heating head and placement head 2 in 1 design. 2. High difinition monitor, to view solders

3. Optical aligment system, Panasonic camera 4. Laser position, fast pcb placement

5. BGA angle adjustment knob for alignment 6. micrometer, fine-tuning position of pcb for align

7, 4pcs temper sensors available 8. 4pcs switches of side heaters, save power.

DH-A4 Specification:

Total Power	6800W
Top heater	1200W
Bottom heater	2nd 1200W, 3rd IR heater 4200W
Power	AC220V±10% 50Hz
Operation mode	Two modes: manual and automatic. HD touch screen, intelligent man-machine, digital system setting.
Optical CCD camera lens	Frontward / backward, right / left
Camera magnification	10x - 220x
Workbench fine-tuning:	±15mm forward/backward, ±15mm right/left
BGA positioning	Laser position, fast and accurate position of pcb and bga
PCB Positioning	Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groove pcb bracket + universal fixtures.
Temperature control	K sensor, close loop, PLC control
Placement accuracy:	±0.01mm
Temp accuracy	±1℃
Lighting	Taiwan led working light, any angle adjustable
Temperature profile storage	50000 groups
PCB size	*Max 530490 mm Min 2222 mm*
BGA chip	2x2 - 80x80 mm
Minimum chip spacing	0.15mm
External temper sensor	1pc
Dimensions	780x740x890mm
Net weight	97KG
