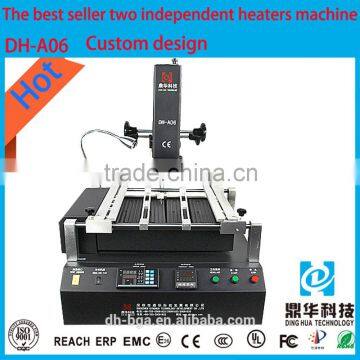

DH-A06 hot air rework station
- Shenzhen
- Credit Card PayPal
You May Like
-
DH-A06 bga reworking bga rework station
-
Dinghua DH-5830 hot-selling mobile phone/ cell phone ic replacement machine
Quality Choice
-
Dinghua DH-5830 best-selling model mobile phone/ cell phone motherboard repairing tools
-
Dinghua DH-5830 hot air reflow soldering machine, mobile phone motherboard repair equipment
-
Dinghua DH-5830 best-selling mobile phone IC repair machine/ tool
-
Dinghua DH-5830 hot-selling laptop/ computer motherboard chip repairing machine
Product Details
| Place of Origin | Guangdong, China | Brand Name | DINGHUA | |
| Model Number | DH-A06 | Voltage | AC220V±10% 50/60Hz | |
| Current | 15A | Rated Capacity | 3200W | |
| Rated Duty Cycle | 100% | Dimensions | 470*490*600mm | |
| Weight | Net weight 30kg | Usage | BGA chip soldering&desoldering | |
| Certification | CE ISO 9001 20008, CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specification:
Power | 3200W |
Top heater | Hot air 800W |
Bottom heater | Infrared 2400W |
Power supply | AC220V±10% 50/60Hz 2.6KW |
Dimension | L470*W490*H600 mm |
Positioning | V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control | K type thermocouple, closed loop control, independent heating |
Temp accuracy | ±2°C |
PCB size | Max 400mm*350mm Min20mm*20mm |
BGA chip | 5*5~55*55mm |
Minimum chip spacing | 0.15mm |
External Temperature Sensor | 1(Optional) |
Net weight | About 30KG |
A06 Main features
lTwo independent heaters all can set 8 segments heating, cooling and constant temperature, saved up to ten temperature profiles. IR preheat area can be controlled according to PCB size
lK sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
lMoveable heater, easy to operate.
lHot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
lV-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
lPowerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
lSound hint system. There is an alarm before the completion of each desoldering and soldering.
lCE certification, with emergency switch and automatic power-off protection device when emergency happens
Upper heater
CE Certification
