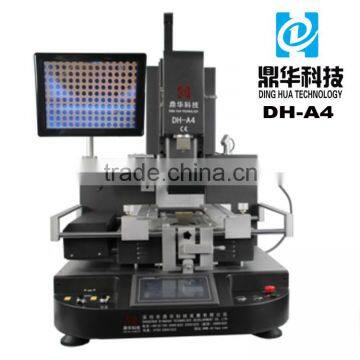

Dinghua DH-A4 auto bga statioon rework galaxy s2 motherboard and sony mainboard with ccd optical alignment system

BGA reowrk station from the best supplier Dinghua repairing led motherboard, GPS board and other consumbales

Specifications:

A4 Main Features

lHD touch screen interface, PLC control

lHD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm

lTop heater and nozzle 2 in 1 design, alignment, placement, welding and remove automatic. Top heater height can be adjust after auto process, user-friendly. Placement height and height of top heater can be set or detect auto.

lThree independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size

lK sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C

lHot air nozzles, 360 degree rotation, easy to install and replace, customized is available.

lV-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.

lPowerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.

lSound hint system. There is an alarm before the completion of each desoldering and soldering.

lCE certification, with emergency switch and automatic power-off protection device when emergency happens

Accessories
