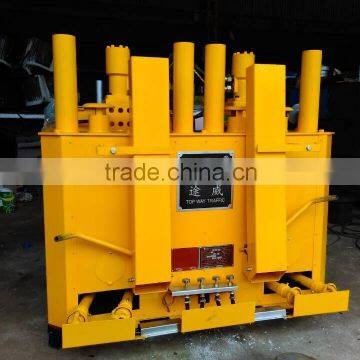

Yellow Thermoplastic Double-tank Melting Kettle

Brief Introduction

  Thermoplastic Double-tank Melting Kettle is one of the key machines for the construction of thermoplastic marking at present. With hydraulic drive as well as positive and reverse rotation controlled by multi-way reversing valve, the melting speed gets faster. It is mostly used in the construction of marking at the sites where fast melting is required such as freeway, State Highway, Provincial Highway etc.

l  The diesel engine and the hydraulic kneader are placed horizontally. The more reasonable position for installation of components makes the area covered by hydraulic kneader smaller; when the electric start of diesel engine is ineffective, it is convenient to be changed to manual start in time.

lThe step less speed changing multi-way reversing valve can control the helical blades to stir independently clockwise or counterclockwise to move paints up and down and make it melted faster. The feeding and melting of newly fed paints is also sped up.

l  The overhead hydraulic thermoplastic kneader can further save the area covered by hydraulic kneader, and hold more paints. It is suitable for clients’ use on small freight truck and for quick melting of paints

Technical parameters



1. Q: Can this machine preheat the thermoplastic paint?

     A: No. It needs to work with a preheater, like the above pictures. The TW-H just can preserve the heat of thermoplastic paint.

2. Q: Do you have thermoplastic road marking machine with a preheater?

    A: Yes, we have. It is model TW-FJ, which is suitable for small line marking project. For more details,plz check our home page.

3.Q: Can I adjust the line thickness? And how?

    A: Yes, it canbe set by adjusting the edging knife and hanger. The normal line thickness is 1.2-4 mm.

4.Q: How to mark lines in different width?

   A:Change the marking hopper, change line width. We have varied sizes,  from 50 mm to 450mm. Usually, the standard equipment is 150mm. The other size is optional. Also, we csn produce special marking hoppers for you.

 5. Q: What about the after-sale service?

     A: We provide  technical advise in the machine's whole life span. We help solving problems via whatsapp, skype,viber and email by sending pictures and videos.

6.Q:  Can you produce customized machine?

    A: Yes, we can.  We are the manufacturer of thermoplastic road marking machine in Guangzhou City.

7. Q: What about the shipment?

    A: It is  your choice. Usually, we recommend sea shipping, which provides reasonable prices. Also, for spare parts, they can be delivered by FEDX, DHL and other international express.

 Any questions are welcome!
