Automatic Soldering Robot DH-2000

FOB Price

US$ 1 - 300 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Dinghua
Model Number	DH-2000	Voltage	220V AC
Current	20A	Rated Capacity	N/A
Rated Duty Cycle	N/A	Usage	reballing, motherboards, solder and desolder, bga chips repair
Certification	CE, ISO9001	After-sales Service Provided	Engineers available to service machinery overseas

Welcome to Dinghua

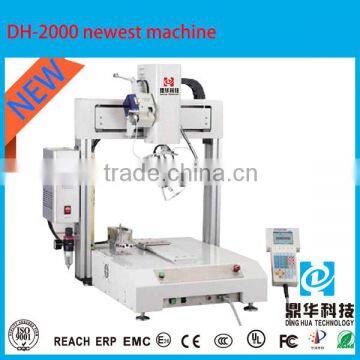

Automatic Soldering Robot DH-2000

Our Service

1. We provide you the friendly English User manual for free.

2. Videos of operating the machine are available.

3. 24 hours technical support by email or calling. We promise to response in 3 minutes, solve the problems in 24 hours.

4. Warranty: 1 year free for the whole machine, 3 years free for the heaters and free life long for technical support always.

Product Description

Parameters of Automatic Soldering Robot DH-2000

Model no.	DH-2000
Removeble axils	4 pcs (synchronous control)
Range of removeble motion
	(X)300mm; available work range 270mm
	(Y)300mm; available work range 300mm
	(Z)100mm; available work range 100mm
	(R) ± 340°; available work range ± 340 °
Maximum movement speed (ptp)	(X) 500mm/sec
	(Y) 500mm/sec
	(Z) 300mm/sec
	(R) 600 /sec
Repetitive accuracy	(X) ±0.01mm
	(Y) ±0.01mm
	(Z) ±0.01mm
	(R) ± 0.02 °
Available saved soldering job program	300
Welding spot aoodinate data permitted in every job program	625
Total saved welding spot aoodinate data	18750
Setting independently soldering condition permitted in every job program	spot welding: 88 pcs; pull welding: 28 pcs; clean: 8 pcs
Control style	PLC Control
Control system	PTP Control, CP Control
Power	220v
Air pressure	4-5 kg cm²
Maximum consumed power	300w
Temperature range	-500 degree(room temperature)
Temperature control accuracy	ø0.3-1.6mm
Applicable tin	±2°c
Maximum load bearing	≤6kg
Applicable workpiece shape	plan, atraight line, 3D
Workpiece size(maximum)	*280mm(X axis) 280mm(Y axis)**

Advantages of Automatic Soldering Robot DH-2000

1. accurate movement in less than ±0.02 mm.Large information storage.

2. it can ensure the accuracy of mechanical repetitive motion less than 0.02 mm .

3. It can record the production information (welding production, solder spot quantity, welding time, total welding time).

4 .Convenient for variety of programming model and features

5. Flexible and various soldering method, while support spot soldering welding and slide soldering welding at the same time.

Product show
