TAM-ZP 1 Color Roll to Roll Automatic Screen Printing Machine
- Shenzhen
- T/T L/C Credit Card PayPal
You May Like
-
TM-500PT Flat Screen Printing Machine
-
TM-700E Round Printing Screen Printer in Middle Size
-
TM-400P Electronics Screen Printing Equipment
-
TMP-6090 CE Cetificated Oblique Arm Type Flat Electronics Screen Printer
-
TMP-70100 Oblique Arm Best Sale CE Standard Quality Flexo Printing Press
-
TM-500E Middle Size Economic Cylinder Screen Printing Machine for Bottle Printing
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | amprinter | Model Number | TAM-ZP | |
| Usage | Bill Printer, Card Printer, Label Printer, Paper Printer | Automatic Grade | Automatic | |
| Voltage | 220V | Gross Power | 3.6KW | |
| Dimensions(L*W*H) | 7.5*0.9*1.65m | Weight | about 1500kg | |
| Certification | SGS | Warranty | 1 Year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Roll to roll automatic screen printing machine

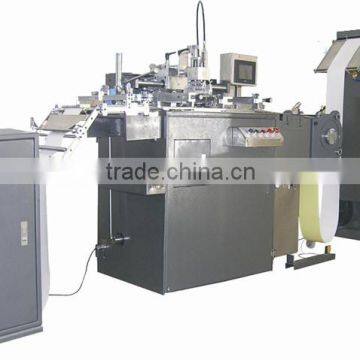

TAM-ZP 1 color Roll to roll automatic screen printing machine with IR+UV dryer
Video link:
http://youtu.be/1poq2I_pGhw
/v_show/id_XNjg1OTY0NjMy.html
Parameters:
Printing speed | 10-80 IMP/min |
Max roll width | 330mm |
Max print area | 320*320mm |
Accuracy of positioning | ±0.05mm |
Mains voltage | 220V±10% |
Main motor power | 1000W |
IR Dryer power | 11KW |
| UV Dryer power | 3.6KW |
Air pressure | 4.5-6kg/cm² |
Overall dimensions | 7.5×0.9×1.65m |
Overall weight | about 1500kg |
MACHINE NET SIZE 74*70*79+203*66*165+60*55*116+191*89*138CM,
PACKAGE ABOUT 13CBM
Applications:
The automatic screen printing machine is applicable to continuous printing, drying and take-up for rolls of PVC, OPP, polyester, self-adhesive paper and heat transfer paper.
Performance Features:
1. Adopt the latest computer numerical control YASKAWA servomotor for feeding;
2. Pneumatic drive is advantageous in many aspects, furnished with advanced pneumatic parts;
3. Photoelectric control for printing positions at four sides;
4. Featured by high registering accuracy, stable feeding, auto counting and warning, convenient adjustment and compact structure.
