Home > Products > High Bay > UL CE and EMC Standard High Quality High Brightness Induction High Bay

UL CE and EMC Standard High Quality High Brightness Induction High Bay

FOB Price

US$ 35 - 200 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Low Frequency Induction Lamp	Voltage	Other, 120-277V
Place of Origin	Shanghai, China	Brand Name	YML
Model Number	YML-GC01D-W150	Power	Other, W100-W250
Working Frequency	250KHz	Certification	UL, CE
Shape	Rectangular

Product Description

Specifications

1. UL and CE certified
2. Energy Saving
3. Free Maintenance
4. Wide wattage 120-277V
5. 5 Years' Warranty

Specifications

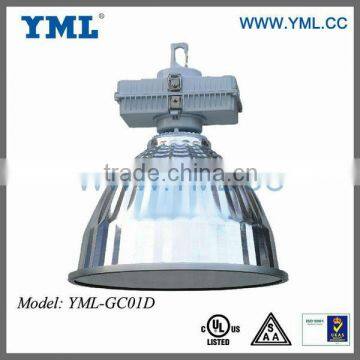

1. YML-GC01D-W150 Induction High Bay Light
2. Manufacturer in Shanghai
3. UL,C-UL-US,TUV,CE,EMC,RoHS,ETL,SAA,GOST,FCC,CB

YML-GC01D seris high bay induction lighting

Production Description

china TOP brand.
CE, UL, ETL,SAA,GOST,FCC,CB,3C, RoHS,EMC listed .
4 TOP chinese professors & engineers.
over 50 patents.
one of the largest manufacturers in induction lighting
Shanghai High-Tech Enterprise Award
some of YML technology features became the national standard

Item	YML specification
Feature define	liner light,good for large wattage application
Application	industrial,street,tunnel,bridge,agriculture,ad,commercial...
Power	40-500W
Efficacy	>80lm/w
CRI	>80Ra
Color temprature	2100-6500K
Lumen depreciation	5% (2000hrs)
Life	>100,000hrs
Heat output	very low
Fitting	easy to accomodate
Light source	good visual effect.
Restrick	instantly
Instant hot restrick	instantly
Glare	no
flicker	no
Eco-friendly	no waste lamp recycling, and no mercury pollution
Energy saving	40-50%
Cost saving	50-75%

Model	Lamp	Power	Ballast	Voltage (V)	CCT (K)	Ambiet Temperature	Installation	Replace HPS Lamp(W)
YML-GC01D-W100	WJY100H850W/T	100	<10	AC:120-277V AC:208-347V	5000	.-25-400C-13-1040F	Hook or 3/4'' hanging Pole	175
YML-GC01D-W120	WJY120H850W/T	120	<12					250
YML-GC01D-W150	WJY150H850W/T	150	<15					320
YML-GC01D-W200	WJY200H850W/T	200	<20					400
YML-GC01D-W250	WJY250H850W/T	250	<25					400

Fixture

1. Vacuum-coated inner surface aluminum hood and highly luminous PC cover maximizes lumen output

2. Tempered glass cover held by profiled aluminum ring for aesthetic appearance and durable use

3. Diamond-shaped reflector optimizes light uniformity

4. Special thermal design for longer lifespan

5. IP Class: IP65 (if using 3/4 hanging pole with ribbons), IP53 (if using hook)

Lamp and Ballast

1. 100-250W round type induction lamp with high lumen efficiency, high lumen maintenance, long lifespan, and excellent CRI

2. 100-250W electronic ballast with die cast aluminum case features high power factor (>0.96), low energy loss, and long lifespan

Applications

Industrial Factories, Warehouses, Stadiums, Airports, Railway Stations, Gas Stations, Supermarkets, and other Indoor Locations

Warning:Disable all power to the luminaire before conducting any maintenance or upgrade activity. Failure to do so will create a hazardous and fatal working environment.
