LD Proppant at Mumbai 2016 China

Description of CERAMIC PROPPANTS

CERAMIC PROPPANTS adopts the high quality and unique bauxite from western Henan Province in China, which is processed by unique grinding, pelleting and high-temperature sintering. The bauxites are fit for grinding. Then it is mixed with various additives, after refining and granulating, the products are of best quality. Therefore, high temperature resistance, high pressure resistance, high capability of leading flow and erosion resistance are among the features of the product, which makes such a kind of professional material indispensable to fracturing construction of oil or natural gas well exploration.

According to the testing of Stim-Lab, Frac Tech Laboratory and Reservoir Stimulation Laboratory of RIPED-Langfang PetroChina, our products are all reached the standard of SY/T5108-2006, SY/T6302-1997, in the leading position of this industry.

CERAMIC PROPPANTS can be classified as follows:

By compression strength: 52MPa (7500psi), 69MPa (10000psi), 86MPa (12500psi), 103MPa (15000psi).

By bulk density: light density, medium density, high density.

By specification: 6-12 mesh, 8-16 mesh, 12-18 mesh, 12-20 mesh, 16-20 mesh, 16-30 mesh, 20-40 mesh, 30-50 mesh, 30-60 mesh, 40-60 mesh, 40-70 mesh, 70-140 mesh, etc.

Moreover, we can produce products with different specifications according to client's particular requirements.

CERAMIC PROPPANTS can be widely used in hydraulic fracturing wells, high-pressure oil layer fracturing.The ceramic proppants is the necessities in oil (gas) hydraulic fracturing technology development and mining, and it plays a tremendous role in the increasing production in oil (gas) field.

Advantage of CERAMIC PROPPANTS:

1. Top supplier of SINOPEC, CNPC andother US companies famous for oil and gas drilling.

2. More than 10 years' experience in oil & energy Industry.

3. High quality products, first-class service, and most competitive price.

4. Rich and high quality local bauxite as raw material.

Workshop

WANLI's highly devoted and well-trained team takes complete care of our customers' product-queries and concerns. We are ready to provide technical support for any questions, including but not limited to, the manufacturing process, the quality control, and the product performance.

6 producion lines provide an annual output of 210,000 MT proppants of different specifications. The raw materials are proportioned by the computer after being carried into the storage bins and crushed into powder by the cylinder ball mill, then, blown into storage bins through pipes in which the materials are fully mingled. Next, the powder is delivered to pelletizing workshop; get spraying pelletized by rotary granulators with diameter of 4m. The beads then are dried, dedusted and sieved by multi-functional screen.

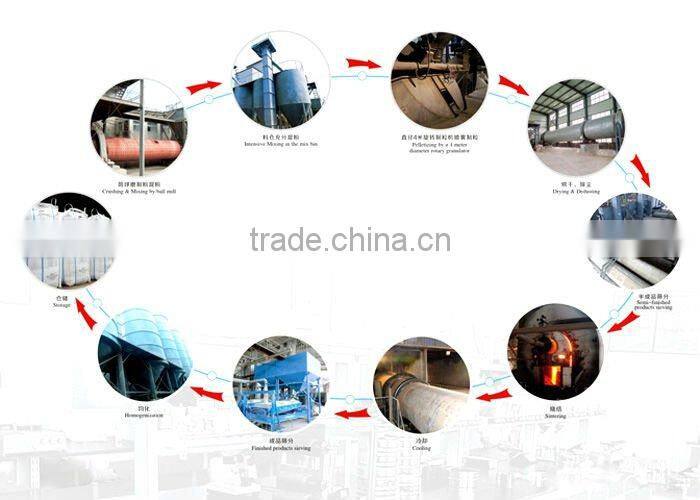

Our production flows are as follows:

Semi- finished product will be sintered in rotary kiln, and then get cooled, dedusted and rescreened. Eventually the finished product are packed and stored in warehouse.

In the raw material procurement process, WANLI processes advantage of abundant mineral resources nearby. The process is controlled strictly with comprehensive sampling and testing.

In pelletization process, with the automatic control system, WANLI can immensely reduce the consume of electricity and detritions of equipment, thus cutting down costs.

In sieving process, the patented multi-functional screening sieve invented by WANLI can perform the screening and inspection repeatedly with high efficiency. All particles will go through 4 systems controlled by the screen of combined rotary drum sieve to tally with the required size range.

In storage process, there is specialized finished product warehouse in the factory. The finished product will be packed and stored in the warehouse where the industry standards are strictly enforced especially the damp-proof and moisture-proof measures.

During the whole process, all the rules in QA/QC system are carried according to API SPEC Q1 & ISO 9001:2008, therefore the quality are strongly guaranteed. Besides, there are specialized pollution discharge systems in all the production procedures which decrease the pollution immensely. The vacuum dedusting equipments are installed in every workshop, which help to create a clean and healthy environment for staff.

R&D Center

We have our own R&D centers. With an area of 1300m, WANLI R&D Center has professional labs for physics and chemistry testing. In the center, there are appointed detecting equipments made by the national designated factory. With years of development, the center has improved methods for test and research, which makes great contribution to the technological updating and economic benefits. Every year, the technical staffs are sent to the National Institute of Refractory, Fracturing and Acidizing Center in Langfang for further study. At the same time, we regularly invite fracturing experts from SINOPEC and CNPC for technical guidance, which guarantees the leading position of our technology in domestic industry.

Currently WANLI has 35 senior engineers and technicians, and 146 technicians. Our highly dedicated and experienced team allows us to offer our customers high quality products, competitive price and prompt deliveries. We always work hard to improve our existing products and pursue new ideas and ways to stay ahead of the changing market.

WANLI Ceramic proppants provides committed, exceptional services to customers with continuous product development. Our product development delivers proppants engineered by our industry specialists according to the ever-changing needs of our highly valued customers to exceed their expectations with competitive prices.

Our productshave passed industrial certification. We constitute a sound quality assurance system according to ISO9001-2008. And our products have successively passed tests of the authentication of Reservoir Stimulation Laboratory of RIPED-Langfang Petro China, Stim-Lab and Frac-Tech Lab. What's more, we havebeen certified as one of the top network suppliers of CNPC and SINOPEC and other companies in China mainland.

Below are our certificates:

Our company and product's excellent performance gains our customers coming from major oilfields and oilfield-services firms home and abroad, such as CNPC, SINOPEC and some foreign companies famous for oil and gas drilling.

Warehouse & Logistics

We have our own warehouse in TX, USA and some other countries, which can guarantee fast delivering in short distance. Also we have warehouse in China mainland and port of Qingdao and other ports.

In mention to our logistics, we can guarantee that we will send our cargo in no more than 1 month. This time includes all the things we get ready for transporting to your country, the time we contact with our domestic local port, which is always Qingdao Port or Tianjin Port, and other procedures passed through our government,so fluent logestic service can be provided to you from our facility to your destination.

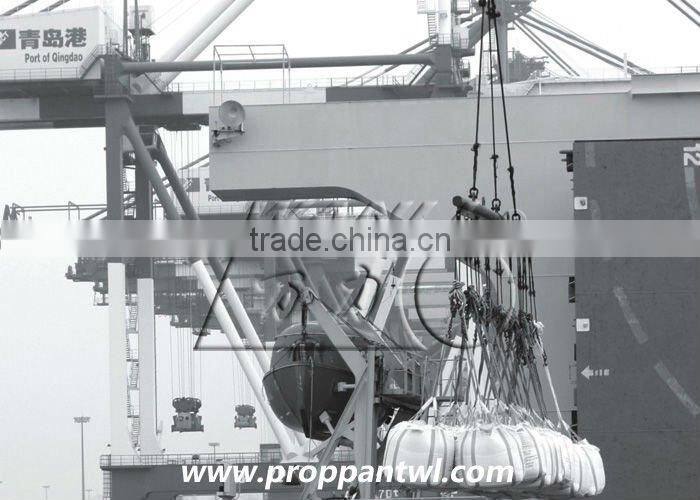

We use exclusive truck team to transfer the proppant from the factory to the ports in China.Bulk carrier and containers are adopted during the sea freight. After custom clearance, we can deliver the products directly to the field spot.

Our package looks like this:

As well as the professional logistics service, we Wanli people always followour enterprise culture:

Provide the customers with the most excellent quality;

Provide the employees with the most desirable environment;

Provide the competitors with the most dependable collaborator;

Provide the society with the most valuable zeitgeist.

If you are interested in our product and company, please do feel free to leave us an enquiry to us. We will reply you as soon as possible. Also we will provide 7*24 hours service online. You can chat with our alibaba instant messenger.

Hope you will find more!
