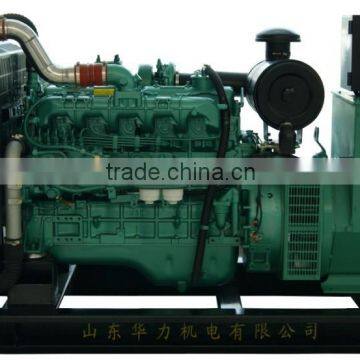

100KW diesel generator set powered by Yuchai engine

Genset :

Model:HL100GF/HL100GFS

Prime Power (KVA / KW):  125/100

Standby Power (KVA / KW):  137/110

Dimensions (mm) (L×W×H):  2340*800*1320(Open type)

Net Weight (kg): 1350

Engine :

Manufacturer:  Yuchai

Model:  YC6B180L-D20

Number of cylinders: 6

Aspiration: Turbo

Bore×Store(mm):108 ×115

Speed Governor:  Mechanical/Electric

Cooling System: Forced Water Cooling Cycle

Fuel Consumption at 100% Load (g/kw • h): 200

Starting Method: DC12V electrical starting

Alternator :

STAMFORD, MARATHON, SHANHUA(HLF100), 3 Phase and 4 Wires, 100% copper wire Brushless, Self-exciting, IP21-IP23, and Insulation Class:  H

Control System:

Smartgen (HGM6110, HGM6120)   DeepSea (DSE7320,DSE7510) , ComAp (AMF20 , AMF25,MRS10)

    SHANHUA located in Wenshang, Shandong, China, it is not far from Qingdao Port. By now SHANHUA products have reached in more than 50 countries all over the world like in Japan, Africa, Kazakhstan, Uzbekistan, Australia, Russia, Southeast Asia, South Asia, South America, Mid-East and etc. We are ready to create win-win situation and achieve greater business success with our potential international partners. We are so confident that SHANHUA will be your wise choice.
