1250kva Power Generator Powered With Cummins Engine

1250kva power generator  powered with Cummins engine

Specification of genset

Genset model:HL1000GF

Prime power: NA

Standby power: 1000KW/1250KVA

Power factor: 0.8

Rated Voltage: 400/230V

Rated frequency (HZ): 50

Dimensions (mm) (L×W×H): 4518×2070×2360

Weight (kg): 9000

Specification of diesel engine

Engine Model: KTA38-G9

Manufacturer: CCEC

Governor: E

Air intake way: Turbo-charged

Cylinders/Arrangement: 12/V

Bore× Stroke(MM): 159×159

Fuel Consumption Rate(L/h): 221

Lubricating oil capacity(L): 135

Coolant capacity (L): 335

Compression ratio: 14.5:1

Displacement, total (L): 38

Net weight (kg): 4222

Engine speed (rpm): 1500

Max Power (kW): 1089

Starting Method: DC12V electrical starting

Specification of alternator

Alternator model: HLF1000

Connecting Type: 3 Phase and 4 Wires

Number of Bearing: 1

Protection Grade: IP21

Altitude: ≤1000m

Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire

Insulation Class: H

Telephone Influence Factor (TIF): ≤50

Voltage Regulation, Steady State: ≤±1%

Transient State Voltage: ≤-15%~+20%

Control System

Operating temperature: -20°C~60°C

Relative Humidity: 95%

Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )

Standard functions: Engine Control/Generator Monitoring/Generator Protection/

                                Engine Monitoring/Clear Text Display

Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,

                  Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,

                  High Engine Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)

Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,

               Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,

               High Engine Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance

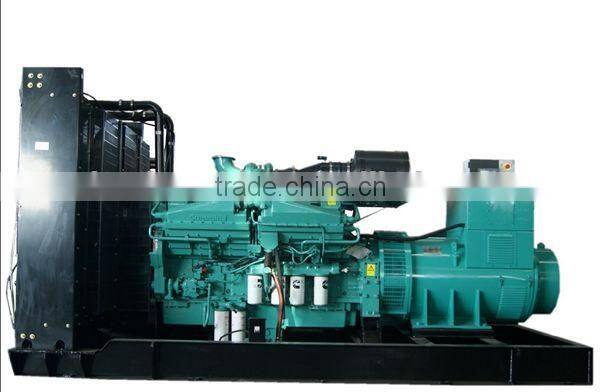

Finished 1000kw/1250kva diesel generator set powered with Cummins engine:

GENEST TYPE:

OPEN TYPE

SILNT TYPE

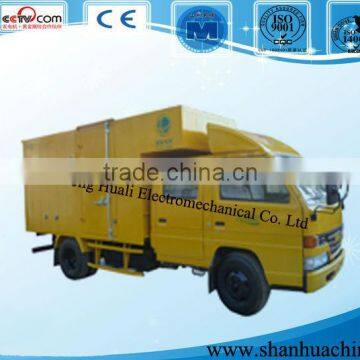

TRAILER TYPE

PRODUCTION LINE:

 PACKING:

CERTIFICATES:
