Alumina honeycomb ceramic filter for iron casting foundry
- Tianjin Shanghai.
- T/T L/C D/P D/A
You May Like
-
Porous, industrial ceramic filter, honeycomb filter for casting foundry
-
Foundry filters, ceramic filters for iron foundry,Smooth casting surface filters
-
Foundry filters, ceramic filters for iron foundry,Smooth casting surface filters
-
Alumina ceramic filter, casting foundry ,ductile iron casting,honeycomb filter
-
Foundry filters, honeycomb ceramic filters,,filter dross,slag from molten metals
-
ceramic filters for melted metal
Product Details
| Place of Origin | Hebei, China | |||
| Model Number | RD60*12/100csi | Brand Name | Honeycomb ceramic for foundry |
Product Description
Honeycomb ceramic is widely used in Iron casting foundry.The feature of large surface,high mechanical and pefect heat-resistance perform help greatly to purity matallic solution,defend defective iron casting and improve surface quality of casting.Ceramic filter is made of pure cordiete, pure Mullite and mix of them.
Performance Index of ceramic filters.
Sectional size |
Thickness |
Aperture |
Number of hole |
Effective filter area |
Flow velocity | ||
|
|
|
|
| Kg/s | ||
mm | mm | mm | cells | mm² | Gray cast iron | Ductile cast iron | |
37×37 | 12.5 | RD2.3 | 161 | 1073 | 3-4 | 1~3 | |
38×38 | 12.5 | RD1.5 | 328 | 1140 | 2~3 | 0.5-1 | |
40×40
| 12.5 | RD1.5 | 407 | 1280 | 2~3 | 1-2 | |
| 15 | RD2.3 | 172 | 1280 | 2~4 | 1~3 | |
43×43 | 10 | RD2.3 | 216 | 1505 | 3-4 | 1~3 | |
50×50 | 13 | RD2.3 | 294 | 2000 | 5-9 | 2~4 | |
55×55 | 12.5
| RD1.5 | 790 | 2475 | 4 ~ 6 | 2-3 | |
|
| RD2.0 | 429 | 2475 | 4 ~ 6 | 2--4 | |
|
| RD2.3 | 367 | 2475 | 6--10 | 3 ~ 5 | |
66×66 | 12.5
| RD1.5 | 1137 | 3564 | 7 ~ 13 | 2-5 | |
|
| RD1.8 | 768 | 3564 | 5 ~ 9 | 2-6 | |
|
| RD2.3 | 537 | 3564 | 9-16 | 4 ~ 6 | |
75×75 | 22 | RD2.5 | 562 | 4725 | 10-18 | 5 ~ 8 | |
| 12.5 | RD1.8 | 900 | 4725 | 9-16 | 4-7 | |
we could design different sizes honeycomb filters as your requirements.
It's trangile hole honeycomb filters.

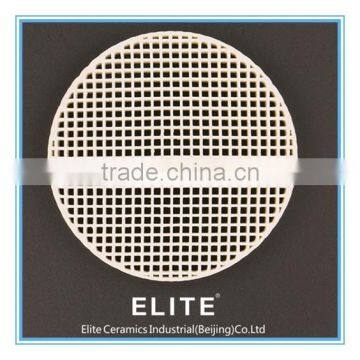

Here is square houle honeycomb ceramic.
