Henan proppant fracking with ISO and API certificates for North America customers

Xinmi Wanli Industry Development Co., Ltd. is located in Zhengzhou City, Henan Province, while the factory is in the New High-tech Development Zone of Quliang, Xinmi City. With a registered fund of RMB 110.18 million, Wanli 408 employees. In 2013, we established branch company-Wanli Resource, LLC in Houston, USA.

Wanli has been devoted to introducing, absorbing, applying and re-innovating the technology for more than 20 years. We have 8 ceramic production lines and 4 full-automatic resin coated sand production lines, which guarantee the ceramic proppant's annual output to reach 280,000MT and the resin coated proppant to reach 120,000MT. So far, we have provided over 1million MT products to the world and meet different oil & gas fields’ demand both in home and abroad, and the products get consistent praise by customers.

WANLI's highly devoted and well-trained team takes complete care of our customers' product-queries and concerns. We are ready to provide technical support for any questions, including but not limited to, the manufacturing process, the quality control, and the product performance.

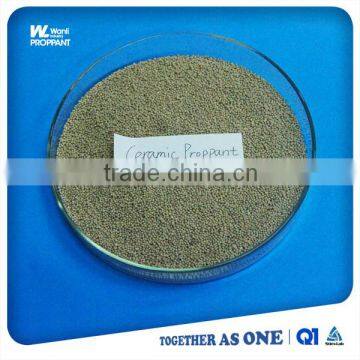

Made from bauxite, ceramic proppant is used in oil & gas well fracturing process and can increase production. In the hydraulic fracturing process, water, proppants and chemical agents are pumped into deep underground rock by high pressure pump, the high pressure extrudes rock into cracks, while proppants keep the ground rock from collapsing by filling into the cracks, it makes gas and oil more easier to be collected through cracks.

Our ceramic proppant can be classified as follows:

By trademark: WL Lite WL Isp WLHsp

By compression strength: 52MPa(7500psi), 69MPa(10000psi), 86MPa(12500psi), 103MPa(15000psi).

By specifications: 6-12mesh, 8-16mesh, 12-18mesh, 12-20mesh, 16-20mesh, 16-30mesh, 20-40mesh, 30-50mesh, 30-60mesh, 40-60mesh, 40-70mesh, 70-140mesh, etc.

Moreover, we can produce products with different specifications according to client’s particular requirements.

The raw materials are proportioned by the computer after being carried into the storage bins and crushed into powder by the cylinder ball mill, then, blown into storage bins through pipes in which the materials are fully mingled.

Next, the powder is delivered to pelletizing workshop; get spraying pelletized by rotary granulators with diameter of 4m. The beads then are dried, dedustied and sieved by multi-functional screen.

Semi- finished product will be sintered in rotary kiln, and then get cooled, dedustied and rescreened. Eventually the finished product are packed and stored in warehouse.

In the raw material procurement process, WANLI processes advantage of abundant mineral resources nearby. The process is controlled strictly with comprehensive sampling and testing.

In pelletization process, with the automatic control system, WANLI can immensely reduce the consume of electricity and detritions of equipment, thus cutting down costs.

In sieving process, the patented multi-functional screening sieve invented by WANLI can perform the screening and inspection repeatedly with high efficiency. All particles will go through 4 systems controlled by the screen of combined rotary drum sieve to tally with the required size range.

In storage process, there is specialized finished product warehouse in the factory. The finished product will be packed and stored in the warehouse where the industry standards are strictly enforced especially the damp-proof and moisture-proof measures.

During the whole process, all the rules in QA/QC system are carried according to API SPEC Q1 & ISO 9001:2008, therefore the quality are strongly guaranteed. Besides, there are specialized pollution discharge systems in all the production procedures which decrease the pollution immensely. The vacuum dedusting equipments are installed in every workshop, which help to create a clean and healthy environment for staff.

Packing: 1.5 net weight ton bags, plastic bag for inner packing, woven bag for external packing. Other packaging are available.

Delivery: Within 30 days.

It will take 8 hours from Wanli factory to Qingdao port or Lianyungang port by truck. It will take 40-50 days by bulk cargo to USA, and 35-45 days by container.

We have our own warehouse in USA and other countries, which can guarantee fast delivering in short distance. we provide 7*24 hours service online. You can chat with our alibaba instant messenger.
