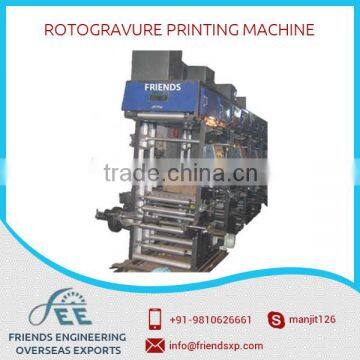

Rotogravure Printing Machine for Sale
- 50 Unit / Units per Month
- DElhi Dry Port India
You May Like
-
Sheet Fed Offset Printing Machine
-
Platen Die Cutter With Hot Foil Stamping
-
Sturdy Structure Paper Die Cutting Machine
-
Reel to Sheet Ruling Machine Available from Top Dealer
-
Fully Automatic Result Oriented Reel To Sheet Ruling Machine
-
Reel To Sheet Ruling Machine print 3 Colours Simultaneously on Both Sides of the Paper
Product Details
Condition | New | Plate Type | Other, Letterpress, Gravure | |
Place of Origin | Delhi, India | Brand Name | Friends | |
Model Number | Rotogravure Printing Machine | Usage | Paper Printer, Tube Printer | |
Automatic Grade | Automatic | Voltage | 308-220 | |
Gross Power | 10 KW | Dimensions(L*W*H) | 1.9*1.8*2.3m | |
Weight | 2000kg | Certification | CE Certification | |
After-sales Service Provided | Overseas service center available |
Product Description
- Doctor Blade is adjusted by pnematic pressure or manually.
- Impression system is controlled by pneumatic pressure or manually.
- Control of longitudinal registration by electric motorised system and manually. Lateral registration by sliding printing cylinder operated manually.
- Air nozzle covered drying chamber complete with sealed heaters, blower and exhaust system.
- All units are with reversible facility.
- Wrinkle removing aluminium web rollers are dynamically balanced.
- Quick change over system for impression rubber roller, printing cylinder and doctor blade.
Rotogravure Printing Machine |
Kind or Web: Films, All FOils, Paper etc. |
No. of Colours: 1 to 10 colours. Max. Web Width: 1575mm |
Max. Working Width: 1525mm |
Max. Printing Speed: Up to 120n/min. (depending on material, ink quality and cylinder diameter) |
Printing Repeat Cylinder: 320mm to 650mm |
Unwinding Reel dia: 800mm |
Rewinding Reel dia: 450mm |
Drying System: Electric Heaters & Hot Air |
Main Drive: DC Electric Motor & Control Panel. |
Drying Chamber Heating Load: 7kw. Each station. |
Auto Tension Control: Optional. |
Web Guide System: Optional. |
Ink Circulation Pump System: Optional. |
Reverse Printing System: Optional. |
Pressure Roller Pneumatic System: Optional. |
Thermal Fluid Heating System: Optional. |
Friends Engineering Corporation is the manufacturer & suppliers of Paper Napkin Machine , Paper Bag Making Machine, Die Cutting Machine ,Corrugated Box Plants, Printing & Binding Machinery since 1960 , the company has emerged as the largest manufacturer of Paper Napkin Machine , Paper Bag Making Machine, Die Cutting Machines in India. The company owes its immense success to the highest standard of quality along with most affordable prices. The products that we manufacture fetch us accolades from our distinguished clientele spread across the globe. We are not only exporting to developing countries but also to the DEVELOPED COUNTRIES.
We manufacture an endless range of technically sound machinery that is recognized for its high quality and string durability features. The vast product range includes: Paper Bag Making Machine , Die Cutting Machines , Paper Napkin Machine , Corrugated Box Plants , Printing ,Packaging, Binding Machinery , Paper Converting Machinery , Exercise Note Book Machinery , Pre Press Machines, Corrugation Machines, Reel to Sheet Cutters, Eccentric Slotter, Four Bar Rotary Cutting & Creasing Machines, Sheet Pasting Machines, Sheet Pressing Machines, Board Cutters, Box Stitching Machines, Hydraulic Type Programmable Fully Automatic Paper Cutters, Semi Automatic & Ordinary Paper Cutters, Book Stitching Machines, Sheet Lamination Machines, Thread Book Sewing Machines, Spiral Binding Machines, Envelope Punching Machines, Carton Folding & Pasting Machine, Paper Folding Machine, Toilet Roll Making Machines, Offset Printing Machinery, Roto Gravure Printing Machine, Flexo graphic Printing Machinery & other related Machinery.
We have a consistency in serving our clients with best of quality products that we introduce in the market. We introduce quality yet innovative designs in the machinery that compete with today’s fast pacing technological standards. We aim at achieving 100% customer satisfaction through our production network.
We stick to tough quality standards that are maintained at every stage of production. Right from conceptualization to packaging, we undertake all the jobs in-house. Our machinery is the best in the industry in terms of functionality and efficiency.We have Factories at Amritsar , New Delhi and Greater Noida including our own Casting Unit.
Friends Engineering Corporation expands its market beyond the boundaries and FRIENDS machines have made their presence felt in many countries.
Friends Engineering continues to enhance its credibility in the International market through innovation, wide range of machines, export oriented approach and thoroughly professional management.
