Reflection level gauge glass

level gauge glass

Level Gauge Glass for boiler
1>materials: Borosilicate
2>temperature: 260c
3>length: 115~400mm
Level Gauge Glass
Also named Sight Glass, Reflex Glasses, Level Gauge Glass, Spares for level gauge, Boiled Gauge Glass, Boiled Parts, ect
Description
Level Gauge Glass is made from Borosilicate with toughened process.
It is used in lever gauge in boiler for water position.

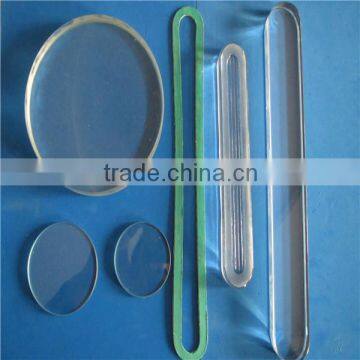

Style:
1)Reflex glass
2)Transparent glass
3)Round sight glass
4)Gsket for glass
Dimensions
1) Reflex glass, available size:
400 x 34(30) x 17mm, 370 x 34(30) x 17mm, 340 x 34(30) x 17mm
320 x 34(30) x 17mm, 300 x 34(30) x 17mm, 280 x 34(30) x 17mm
250 x 34(30) x 17mm, 218 x 34(30) x 17mm, 190 x 34(30) x 17mm
165 x 34(30) x 17mm, 140 x 34(30) x 17mm, 115 x 34(30) x 17mm
The other size is optional or according to the requirements of customers.
Working temperature: 260 degree C, Working pressure: 4.0MPa

2) Transparent plane (without grooves)
The available size same as reflex glass.
Working temperature: 260 degree C, Working pressure: 8.0 MPa

3) Round glass
Thickness: 10mm-25mm
Diameter: 50mm - 250mm
Pressure: 6 - 25 bar
Temperature: 250 degree

4) Gasket for glass
Asbestos gasket and non-asbestos gasket
