Circular Toughened glass round edges polished

Product Description

We are manufacturer and exporter of Level gauge reflex glass in China, reflex glass is made from Borosilicate with toughened process; It is used in lever gauge in boiler for water position. Our products exported to many countries, such as Russia, USA, South America, Spain,Malaysia, Pakistan, Thiland, India etc

The series include:
1)Reflex glass
2)Transparent glass
3)Round sight glass
4)Gsket for glass

1) Reflex glass, available size:
400 x 34(30) x 17mm, 370 x 34(30) x 17mm, 340 x 34(30) x 17mm
320 x 34(30) x 17mm, 300 x 34(30) x 17mm, 280 x 34(30) x 17mm
250 x 34(30) x 17mm, 218 x 34(30) x 17mm, 190 x 34(30) x 17mm
165 x 34(30) x 17mm, 140 x 34(30) x 17mm, 115 x 34(30) x 17mm
The other size is optional or according to the requirements of customers.
Working temperature: 260 degree C, Working pressure: 4.0MPa

2) Transparent plane (without grooves)
The available size same as reflex glass.

400 x 34(30) x 17mm, 370 x 34(30) x 17mm, 340 x 34(30) x 17mm
320 x 34(30) x 17mm, 300 x 34(30) x 17mm, 280 x 34(30) x 17mm
250 x 34(30) x 17mm, 218 x 34(30) x 17mm, 190 x 34(30) x 17mm
165 x 34(30) x 17mm, 140 x 34(30) x 17mm, 115 x 34(30) x 17mm
Working temperature: 260 degree C, Working pressure: 8.0 MPa

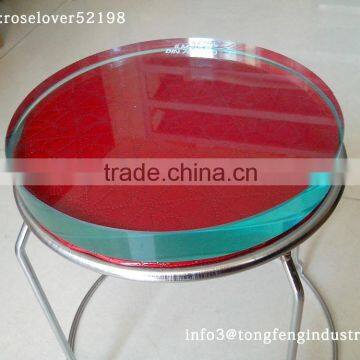

3) Round glass
Thickness: 10mm-25mm
Diameter: 50mm - 250mm
Pressure: 6 - 25 bar
Temperature: 250 degree C

4) Gasket for glass
Pure graphite gasket and non-asbestos gasket
