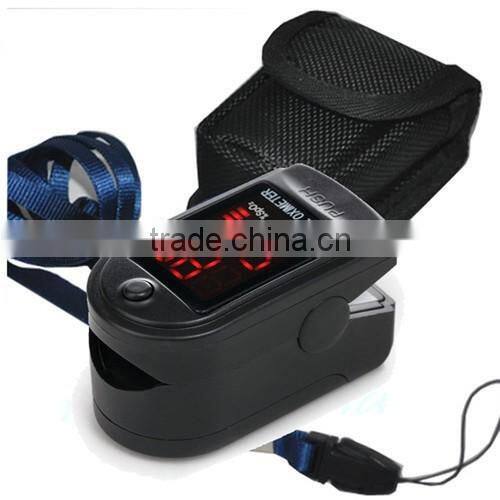

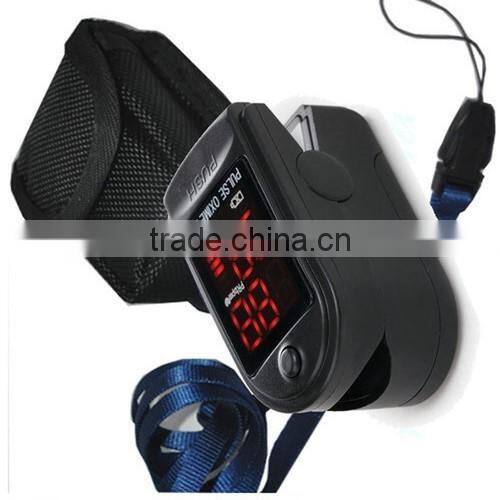

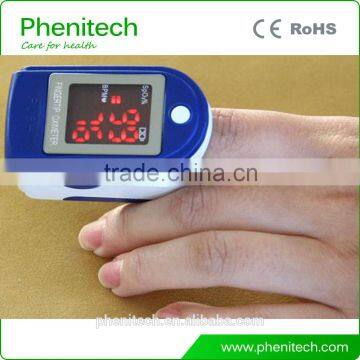

Fingertip oxymeter SPO2,PR monitor OLED Blood Pulse oximeter colors

Specifications

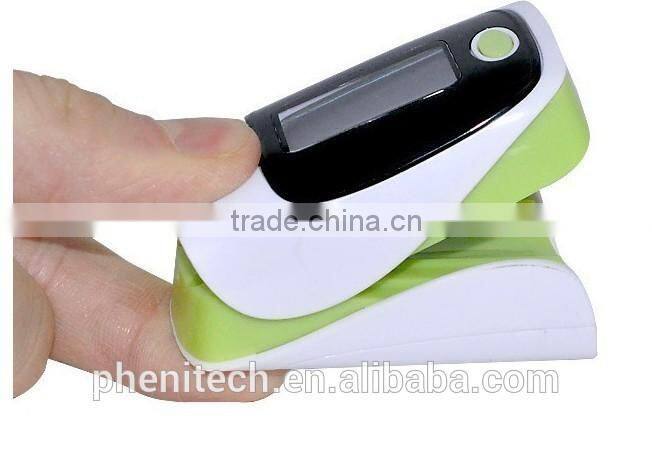

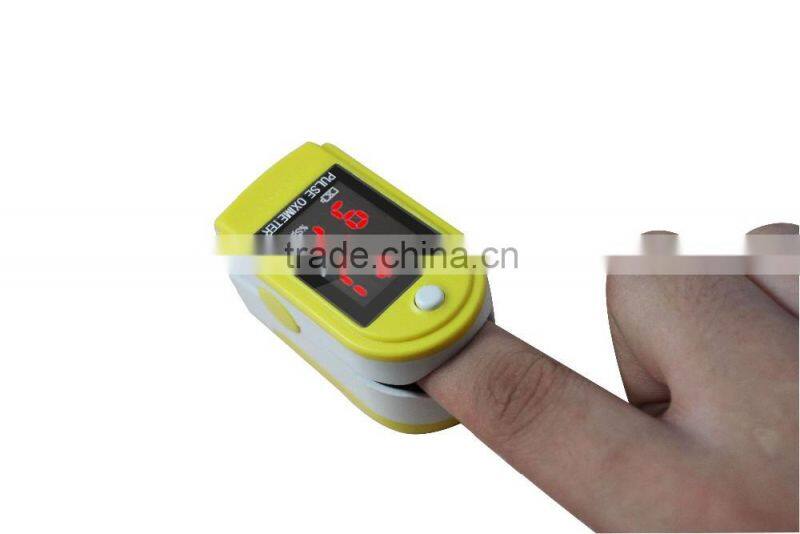

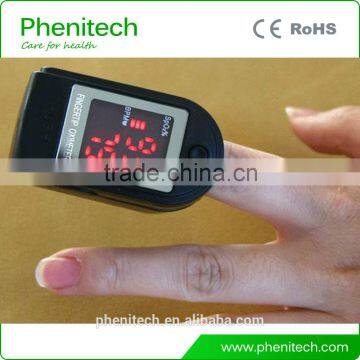

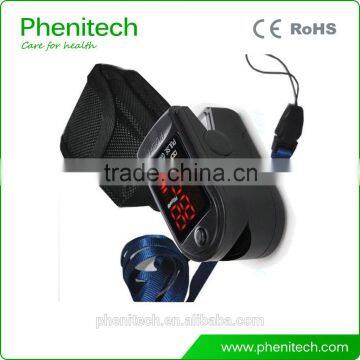

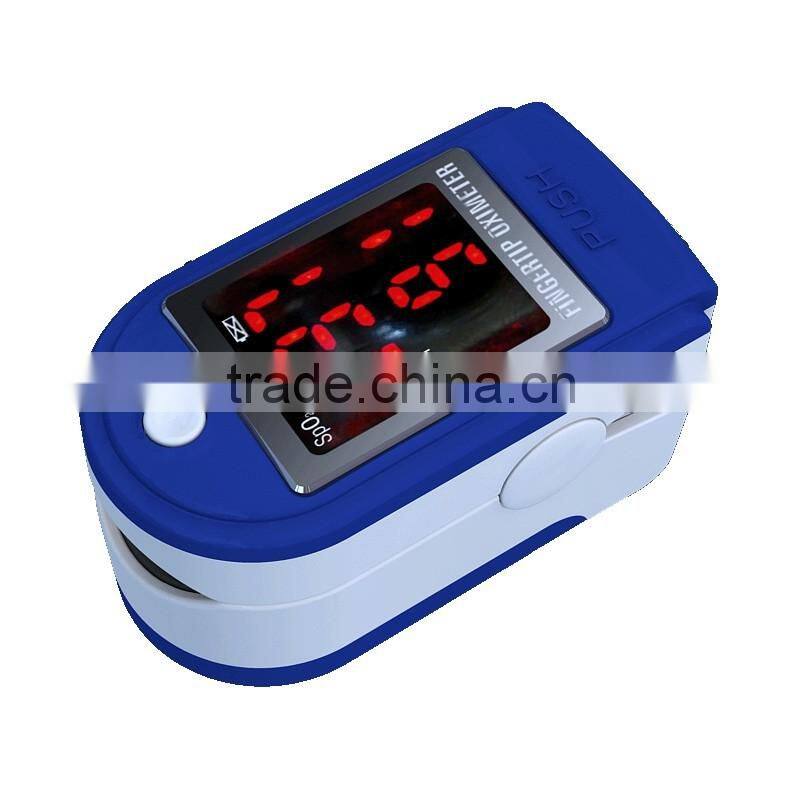

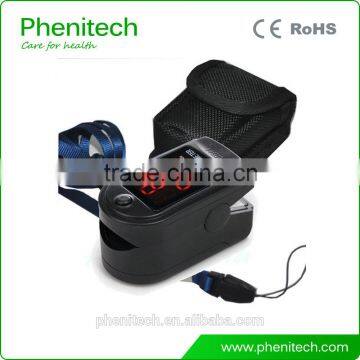

fingertip pulse oximeter
FDA, CE and ISO certificate approve
Color LCD display with four directions
Small size and easy-ope

Instructions
Principle of the 50D Pulse Oximeter is as follows: Photoelectric Oxyhemoglobin Inspection
Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology,the
Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through
finger.The product is suitable for being used in family, hospital, oxygen bar, community healthcare,
physical care in sports (It can be used before or after doing sports, and it is not recommended to
use the device during the process of having sport) and etc.

Major Features
1. Integrated with SpO2 probe and processing display module
2. Small in volume,light in weight and convenient in carrying
3. Operation of the product is simple ,low power consumption
4. SpO2 value display
5. Pulse rate value display, bar graph display
6. Pulse waveform display
7. The display mode can be changed
8. Screen brightness can be changed
9. Low-voltage indication: low-voltage indicator appears before working abnormally
which is due to low-voltage.
Automatically power off function: when the device is under the state of measuring
interface . it will automatically power off within 5 seconds if the finger falls out of probe.
* Display format can be saved after power off

Main performance

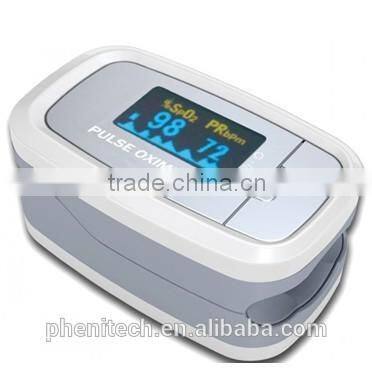

1. Display Mode:0.96" Dual-color OLED display(blue and yellow)
2. Screen Resolution:128*64
3. SpO2 Measuring Range:0%~100%, (the resolution is 1%).
4. Accuracy:70%~100%:±2% ,Below 70% unspecified.
5. PR Measuring Range:30bpm~250bpm, (the resolution is 1bpm)
6. Accuracy:±2bpm or ±2% (select larger)
7. Measurement Performance in Weak Filling Condition:SpO2 and pulse rate
can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%,
pulse rate error is ±2 bpm or ±2% (select larger).
8. Resistance to surrounding light: The deviation between the value measured in the
condition of man-made light or indoor natural light and that of darkroom is less than ±1%
9. Power Consumption:less than 30mA
10. Voltage: DC 2.6V~3.6V
11. Power Supply:1.5V (AAA size) alkaline batteries × 2
12. Battery working hour: Theoretical number is 32 hours.
13. Safety Type:Interior Battery,BF Type

1. Where is your factory located? How can I visit?

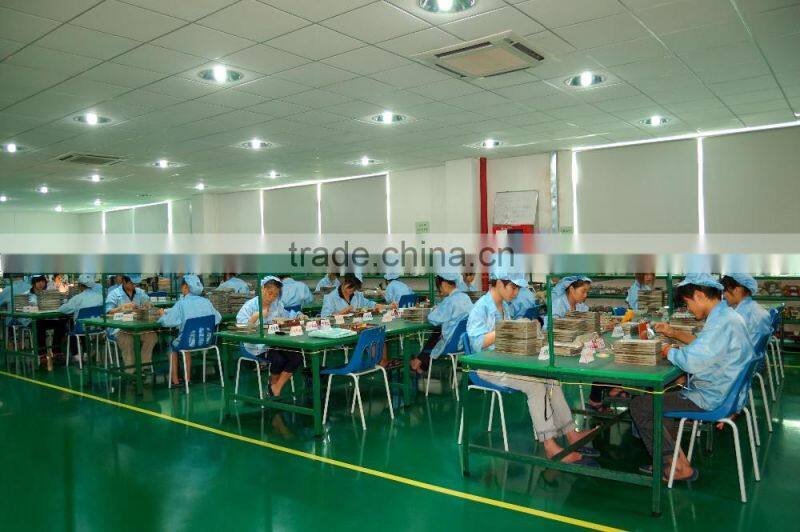

Our factory is located in Shenzhen City, Guangdong Province. Welcome to visit us!

2. Can you do OEM?
Yes. We can make your brand and design. and also can make the packing as per your request.

3. And Logo printed?
We can print your logo in the products as you required.

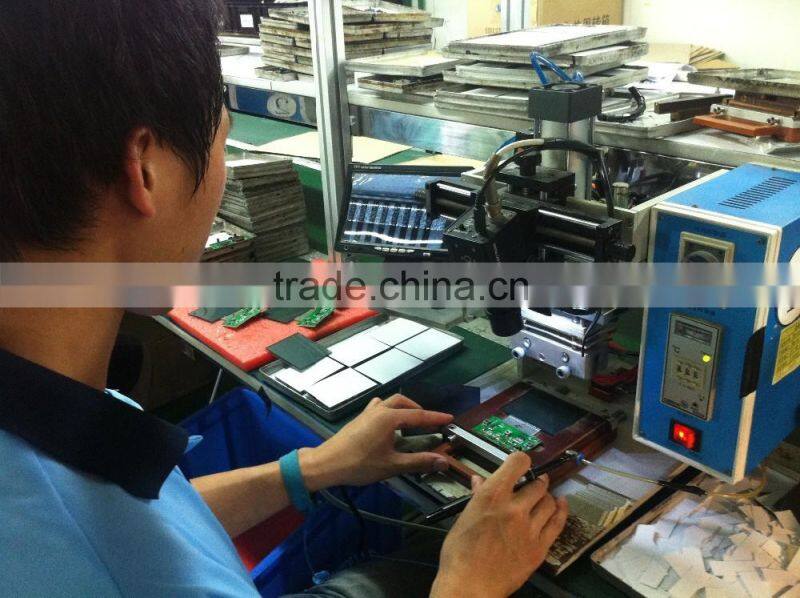

4. How does your factory do regarding quality control?
1) All raw material we used are environmental-friendly.
2) Skilful workers care every details in handling the producing and packing process.
3) Quality Control Department is specially responsible for quality checking in each process.
