Competitive price Electric power diesel generator set Rated Power 150KW diesel generator from china manufacturer

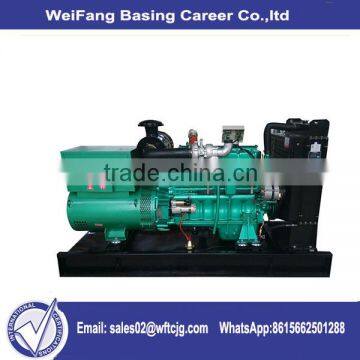

150kw/187.5kva  HUAKE POWER diesel generator

Generator model: RMW-150

Steady state voltage regulation(%): ≤±0.5

Output powder:150kw/187.5kva

Voltage fluctuation rate(%):≤0.5

Powder factor: COSΦ=0.8 in three phase

Transient voltage regulation(%):-15~+20

Output voltage: 220v/380v,230v/400v,

110V/220v

Voltage steady state time(s):≤0.5

Output current: 270Amp

Steady state frequency adjustment rate(%)

:0~5 adjustable

Rated frequency: 50Hz or 60Hz

Frequency fluctuation rate(%):≤0.5

Rated speed: 1500rpm or 1800rpm

Transient frequency modulation rate(%):≤±10

Fuel brand: ( standard) 0# light diesel oil

Frequency recovery time(s): :≤5

Fuel consumption: 213g/kw.h

Diesel Engine Technical Parameters

Brand/origin:  HUAKE POWER

Cooling mode: closed cooling water circulation

Engine type: WDJ129D16

Oil supply: direct injection

Rated power:150kw/187.5kva

 in 50Hz or 60Hz

Speed adjustment: Electronic

Standby power:165kw/:206.25Kva

Qty of cylinders/cylinder structure:

6 cylinder on line

Air inlet: turbo Charged

Bore by stroke:135*150mm

Overload capacity: 110%

Engine oil capacity: 30L

Discharge 12.9L

Compression ratio: 16.5:1

Rated speed: 1500rpm or 1800rpm

Startup mode: DC 24V electric start

Brushless synchronous  Alternator

Brand:  RAYMING

Insulation class: H

Model:RMW-150

Connection mode: three phase four wire, Y type

Rated powder:150kw/187.5kva

Adjust way: AVR( automatic voltage regulator)

Output frequency:50Hz or 60Hz

Output factor: COS Φ=0.8

Rated speed: 1500rpm or 1800rpm

Battery

2*105A

Control panel

Model

SmartGen HGM610
