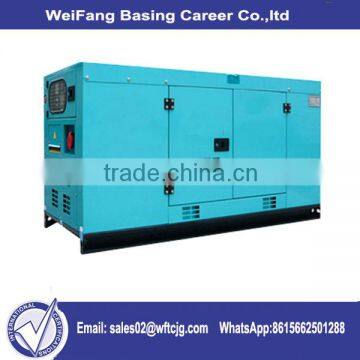

Rated Power 250kva/200kw silent AC Three Phase Output Type Diesel Generator from China diesel genset factory

FOB Price

US$ 500 - 5,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. Specification of genset
Gensets model	HUAKE250V6
Prime power	200KW/250KVA
Rated Voltage(V)	440/220
Rated frequency(HZ)	60
Rated Speed(RPM)	1800
Power Factor	0.8(lagging)
Dimensions(mm) (L×W×H)	3590x1250x2050	Open type
Genset Weight(kg)	2600
Dimensions(mm) (L×W×H)	3600x1400x1950	Silent type
Genset Weight(kg)	3550
2. Specification of diesel engine
Engine model	HUAKE734GE
Rated power	220kW/275kVA
Number of Cylinders	6
Cylinder arrangement	-In line
Cycle	Four stroke
Aspiration	Turbo
Bore×Stroke (mm×mm)	108x 130
Displacement (Liter)	7.15
Compression Ratio	17.0:1
Speed Governor	Electrical
Cooling System	Forced Water Cooling Cycle
Total lubrication system capacity (L)	34
Fuel Consumption at 100% Load (g/kw.h)	204
Starting Method	DC24V electrical starting
3. Specification of alternator
Alternator brand	Stamford
Alternator model	UCI 274J
Rated power	181KW/227KVA
Number of Phase	3
Connecting Type	3 Phase and 4 Wires
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class	H
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%
