4 inch IPS electronic display with high contrast, full viewing angle and sunlight readable featured resistive touch panel
Negotiable
/ Piece
1 Piece(Min.Order)
- 100000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
4 inch IPS electronic display with high brightness and high contrast and full viewing angle
-
3.5 inch small LCD display IPS with high brightness 800nits and high contrast 1000:1
-
3.5 inch outdoor LCD display with full viewing angle and high contrast and high brightness
-
3.5 inch TFT panel with multi-touch capacitive touch screen, high brightness and sunlight readable
-
3.5 inch IPS touch display screen with high brightness and high contrast and full viewing angle
-
3.5 inch IPSLCD panel with high contrast, full viewing angle and sunlight readability
Product Details
| Place of Origin | Guangdong, China | Brand Name | startek | |
| Model Number | KD040FM-1A-TP | Type | TFT |
Product Description
Detiled Descriptions:
| 1 | LCD name | 4 inch IPS electronic display |
| 2 | Part No. | KD040FM-1A |
| 3 | Compatible part No. | KD040FM-1-TP |
| 4 | Size. | 4.0 inch |
| 5 | Display type | IPS |
| 6 | Display colors | 65K/262K /16.7M |
| 7 | Resolution (pixels) | 480(RGB)*800 |
| 8 | Pixel pitch | 0.108(H)*0.108(V) |
| 9 | Viewing direction | ALL (160°) |
| 10 | Controller IC | ILI9806E |
| 11 | Luminance | 330cd/m2 |
| 12 | Contrast | 500 |
| 13 | Display mode | Transmissive Normally Black |
| 14 | Pin NO. | 50pins |
| 15 | Pin pitch | 0.5mm |
| 16 | Connecting type | FPC Socket |
| 17 | Overall size | 58.26*98.1*2.2 mm |
| 18 | Viewing area | 53.44*88.0 mm |
| 19 | Active Area | 51.84*86.40mm |
| 20 | Interface type | 8/9/16/18 bit MCU 16/18/24 bit RGB 3 wire SPI |
| 21 | Input voltage | 3.3V |
| 22 | Backlight type and color | LED backlight /White |
| 23 | Backlight | 8 LED in series Vled =12.8V, Iled=40mA |
| 24 | Life span | 100000h |
25 | Operating temperature range | -20----70 °C |
| 26 | Storage Temperature range | -30----80°C |
| 27 | Certification of registration | ISO9001:2008 |
| 28 | Compliant | RoHS |
Lead time:
Sample (1---30 PCS) immediately
31---100 PCS 1 week
101---500 PCS 1--2 weeks
501---1000 PCS 2--5 weeks
1001---5000 PCS 3--5 weeks
5000 PCS+ 5--7 weeks

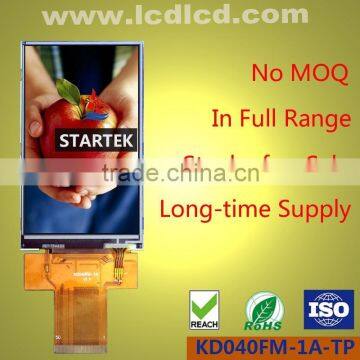

Pic 1: The photo of the front of the working LCD module
Pic 2: the photo of the front of the non-working LCD module
Pic 3; the photo of the back of the LCD module
KD040FM-1A-TP is a very special LCD module,the display effect is very similar to OLED.
Compared with the usual LCD module, it has great difference:
| KD040FM-1A-TP | Usual LCD module | |
| contrast | 500:1 | 300:1 |
| Brightness | 330 nits | 200 nits |
| Sunlight readability | Yes | No |
| Response speed | 0.1mS | 10mS |
| viewing angle | Full viewing angle | 12:00/6:00 |
| Side viewing | No color change | Color get dark and dim |
| Anti-static | Strong | Weak |
PIC 4-7: Pictures of Comparison
Pic 8.Transferring board is used to amplify the LCD interface so that we can
easily and quickly to function the LCD.We tend to like making the LCD work
before designing the product
Pic 9:Conector is used to connect the LCD to the PCB via FPC
