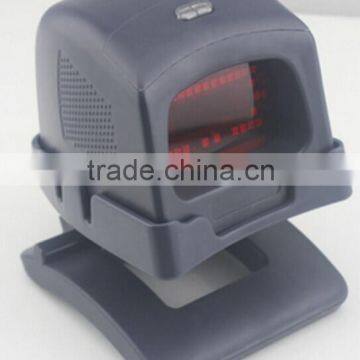

Fixed Mount 2D barcode Scanner, Desktop 2D barcode scanner,Supermarket 1D&2D barcode scanner, desktop Scanner.factory price

Operational

Light Source

Visible Red LED 625nm±6.5nm

Visual Indicators

Blue=ready to scan; white=good read; Yellow=automatically scanning

Host System Interfaces

USB,RS232,keyboard Wedge,IBM 46xx(RS485)

Mechanical

Dimensions(L*W*H)

(With stand)1300mm*98mm*128mm;(Host)125mm*86mm*85mm

Weight

(With stand)510G;(Host)310G

Electrical

Input Voltage

5VDC

Operating Power(typical)

2W(400mA@5V)

DC Transformers

Class2:5VDC@2A

LED Class

Class1;IEC60825-1 EN60825-1

EMC

FCC Part15,IEC60825-1,EN55022 Class B

Environmental

Operating Temperature

0°C-45°C

Storage temperature

-40°C-60°C

Humidity

0% to 95% relative humidity, no-condensing

Drop

Designed to withstand 1.5m(5') drops

Environmental sealing

Sealed to resist airborne particulate contaminants

Light Level

100000 Lux(9290 foot-candles)

Scan performance

Scan pattern

Area Image(1280*512 pixel array)

Motion Tolerance

47 cm/s(18 in/s) for 13mil UPC at optimal focus

Scan Angle

Horizontal:50

Print Contrast

20% minimum reflectance difference

Pitch,Skew

75°,75°

Decode Capability

*1D:Code 39,Code 93,Code 128,UPC/EAN/JAN,Code2 of 5,Code11,Codebar,MSI Plessey,GS1 databar;Telepen,Trioptic
*PDF:PDF 417, MicroPDF417
*2D:QR code, Micro QR Code, Data Matrix, Aztec Code,Maxicode,Code block, Composite code, POSTNET,PLANET,UPC,Intelligent Mail, Canada Post, Australia Post, Japanese Post, Royal Mail RM4SCC,KIX Code
*OCR:OCR-A,OCR-B,E-13B MICR
