TLSS series China Professional High Quality Feed Screw Conveyors/grain screw conveyors

Specifications

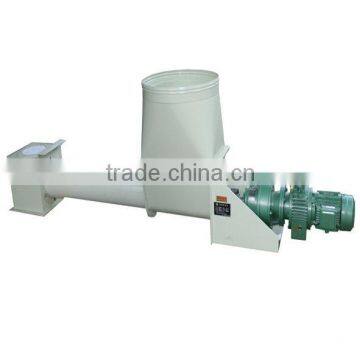

TLSS Series Tubular Screw Conveyor:

Principle

- A shaft welded with screw is installed in a round type casing. Granular or pulverulent products are fed into the machine and transferred straight forward to the discharging outlet by the rotoring screw welded on the shaft.

Features

- Modular, sturdy design and excellent fabricating.

- Reliable production with high capacity, gentle to product

- Easy installation and maintenance, low operating energy consumption

- Precise batch weights through exact proportioning

- Inlets and outlets can be configured as required, lengths up to 12 meters

- Dust-tight housing, high degree of sanitation

- Overflow gate with personal protection switch, intermediate outlet with slide gate, direct drive with flanged-on spur gearing or foot-mounted spur gearing

- Flexible coupling between the drive and the screw shaft

Optional

- Stainless steel screw and trough for wheat dampening or flour is available for higher sanitation.

- Customized coat of paint is optional

- Varied 360° chain drive is optional

- Bottom gates is optional for easy cleaning of the screw and trough

Application

- Widely applied in grain mills and feed manufacturing plants, malt houses, bulk storage systems (for cereal grains, oilseeds and derivatives), food processing facilities, fertilizer factories, and in chemical and related industries

- Conveying, proportioning or discharge (several inlets and outlets possible)

- Horizontal and inclined product conveying

- Vertical conveying for small type

- For floury and mealy, fine- and coarse-grained materials

Please feel free to contact us if more information is needed.

SPEC.
