XWZ-120 Vertical Type Bottle Cartoning Machine

FOB Price

US$ 1,000 - 50,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Commodity, Food, Other, Medical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type	Cartons	Packaging Material	Paper, Other
Automatic Grade	Other, Automatic, Automatic	Driven Type	Other, Electric, Electric
Voltage	380V 50Hz	Power	1 KW, AC220V 60HZ 1KW
Place of Origin	Zhejiang, China	Brand Name	HOPING
Model Number	XWZ-120	Dimension(LWH)	175012001700mm, 175012001700
Weight	1200, 1200KG	Certification	CE, ISO 9001, CE, ISO 9001
After-sales Service Provided	Engineers available to service machinery overseas

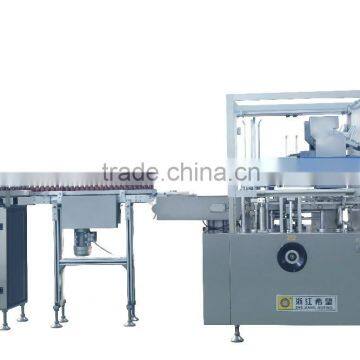

XWZ-120 Vertical Type Bottle Cartoning Machine

Specification:

Suitable for medicines(blisters) or plastic bottle(glass bottles)
The whole process is automatic.
It can be linked with blister packing machine or filling and sealing machine prior to is so as to form a packing production line.

Main Technical Parameter:

Capacity(box / min)	30-120
Packing Material Box dimension (LWH) (mm) Cardboard of box required (g/m²) Leaflet dimension (L*W) Leaflet paper required(g/m²)	30-120
	(70-125)(35-85)(15-65)
	280-350
	(80-260)*(80-180)
Clean compressed air (pressure)(Mpa)	0.5-0.7
Air consumption(m³/min)	≥0.3
Power	AC220V 60HZ 1 KW
Overall dimension(LWH)(mm)	175012001700
Net Weight(kg)	1200

Product Description

1) Machine parts:

Bottle turntable

Leaflet folder

Packaging & Shipping

1, Packaging details: exporting standard wooden case

2, Within 50 days after receipt of 30% payment by T/T.

Production Line
