Home > Products > Transmitter > Single phase Hz frequency transmitter

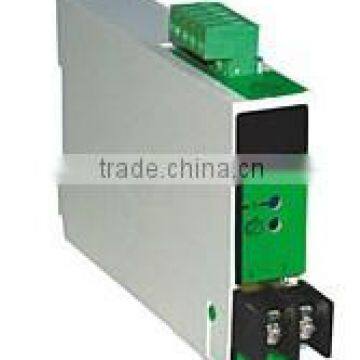

Single phase Hz frequency transmitter
- 300 Piece / Pieces per Month
- Shanghai/ Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HXDZ Single phase frequency transmitter | |
| Model Number | HXDZ-BS4F Single phase frequency transmitter | Display Type | Analog Only | |
| Measuring Range | 0~9999 Single phase frequency transmitter | Accuracy Class | 0.5S Grade,1.0S Grade Single phase frequency transmitter | |
| Supply Voltage | AC 220V Single phase frequency transmitter | Operating Temperature | -10~55°C Single phase frequency transmitter | |
| Dimensions | 135(L)*23(W)*92(H)mm |
Product Description
Specifications
It can transmit electrical parameters in the power grid into DC analog signal (0~20mAdc ,4~20mAdc,0~10Vdc, 0~5Vdc).1. Product overview:
It is a meter which can transmit electrical parameters in the power grid into DC analog signal or digital signal, the product can be applied to electricity collection of various control systems, building automation, distribution network automation, community electricity control, industrial automation, intelligent distribution board, switch cabinet.
2. Product feature:
1. Usage: It is a meter which can transmit three-phase power factor parameters in the grid into linear DC analog signal through isolation.
2. Measurement: three-phase power factor transmission output
3. Precision: 0.2%,0.5% (according to the use of precision)
4.Output:0~20mAdc ,4~20mAdc,0~10Vdc, 0~5Vdc,etc. Analog signal.
3. Technical indicators
AC input | 45-55Hz,etc. |
Input load | Voltage transformer CT:≤0.1VA |
Allowable overload | Continuous: 2 times Instant: voltage 2 times/s |
precision | 0.5% |
Response time | ≤500ms |
Output voltage | 0~10Vdc, 0~5Vdc(load resistance=input voltage/10mAdc) |
Output current | 0~20mAdc ,4~20mAdc(load resistance≤510Ω) |
Output wave | ≤0.5% RO peak to peak value |
Working environment temperature and humidity | 0~50°C/<80% relative humidity(no condensation state) |
Storage environment temperature and humidity | -20~70°C/<70% relative humidity(no condensation state) |
Use of power | AC/DC 85V ~ 265V, 50Hz |
Isolation | input/output/power supply /case |
Power consumption | DC about 3W,AC about 4VA |
Sheathing material | ABS fireproof material |
Weight | About 300g |
Compression strength | AC2kVrms/min |
Isolation resistance | >100MΩ when DC500V |
dimension | 135(L)× 23(W)× 92(H)mm |
Installation mode | 35mm standard lead rail |
Order example:
Example 1:frequency transmitter
signal input:AC0-100V output:DC4-20MA
working power supply: AC/DC80-265V
others:(In accordance with the default factory settings if not stated)
Dimensions:
