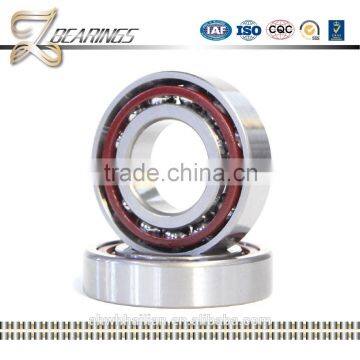

Single-row angular contact ball bearing 7207ACTA-P5 DBB-3 GOLDEN SUPPLYER

Single—row angular contact ball bearing will have axial component force when bearing radial load.For this reason,two bearings should be used back to back or face to face.

A contact angle exists between rings and balls,The standard contact angles are 15° ,25° and 40° .The bigger the standard angle is ,the higher the capability to bear axial load will be.The bigger the contact angle is,the more advantageous to rotate it will be.

Single—row bearing can bear axial load and unidirectional axial load.

Double—row angular contact ball bearing has such two types of structure as one outer ring with two inner rings and one outer ring with one inner ring.

DB combination.DF combination and double—row bearing can bear radial load and bi—directional axial load.DT combination is applicable to occasions where unidirectional axial load is high and the rated load of a single bearing is not sufficient.

Two single—row angular contact bearings combined back to back in structure have common inner and outer rings,capable of bearing axial load and bi-directional axial load.

Angular contact bearing is suitable for rotation at a high speed and accuracy.

Such bearings are mainly applied to main shafts, high frequency motor,internal combustion turbine,oi| pump,air compressor,printing machinery,etc.

We will provide day-and-night services and constantly improve service.

If you are interested in our products bearing, we can provide the most competitive prices.

When you have any request, please feel free to contact us. And any comments or precious advice are welcomed!

Company has 468 staff in total and 56 of them are senior or intermediate technicians. The company is professional in bearing designing, manufacturing, and marketing and is equipped with advanced production lines. Their annual output is 5 million sets of bearings with 5000mm in diameter, which are all certified by the IS09001:2008 Quality Management System Requirements and reach level P5 and P4. The production is exported to Europe, America, southeast Asia and other countries.

Sticking to the pursuit of excellence, the company is implementing the 6S principle and improving the skiff management in order to offer the best production and service.

The company has 200 production facilities and 150 testing machines. Among them are world famous 934 centerless grinding machines from Sweden, CNC turning lines from Shenyang. COK5250 double column vertical lathes and TX6213 Digital floor type boring and milling machines. Different needs can be greatly satisfied.

Company has international advanced testing equipment in its prniaegibind testing center: Talyrond roundness instruments, 3D measuring machines, Talysurf figure minswing instruments, sine vibration controllers , different types of rapidity and acceleration vibration and olher testing machines which will guarantee the quality of production. The pass rate is 100%
