Home > Products > Auto Loader > Auto conveyor material suction loader 500kg/h

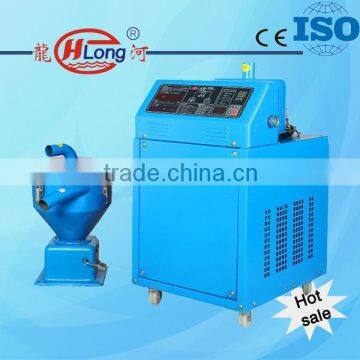

Auto conveyor material suction loader 500kg/h
- 100 Set / Sets per Month
- Guangzhou
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Vertical Conveyor | |
| Material | Plastic | Material Feature | Other, plastic | |
| Structure | Other, air conveyor | Load Capacity | 500kg/h | |
| Place of Origin | Guangdong, China | Brand Name | Longhe | |
| Model Number | AS-800G | Voltage | 380v | |
| Power(W) | 750w | Dimension(L*W*H) | 460x380x700mm | |
| Certification | ISO9001 and CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
APPLICATION AND PROPERTIES:
1, Vacuum Feeding Machine is applicable for conveying raw materials and granulated materials for avoiding pollution.
2, It features microcomputer control, simple operation and easy repair, and may automatically alarm when there isn’ t material.
3, Stainless steel material chamber door for protecting the materials from pollution, independent filtering device.
4,Convenient for removing dust, adopt double elecrtic-eye switch to control the feeding action (optional), motor protective device, filter observing window.
5,Two-Material Proportional Valve is optional for mixing new material with granulated material or immediately recycling granulated material.
TECHNICAL PARAMETERS:
Model | AS-300G | AS-400G | AS-800G | AS-800G2 | AS-900G | ||
Motor power(w) | Type | Carbon Brush Type | Induction Type | Induction Type | Induction Type | Induction Type | |
Specification | 950 | 750 | 750 | 1100 | 3000 | ||
Voltage Specification | 1Φ,230v,50HZ | 3Φ,400v,50HZ | 3Φ,380v,50HZ | 3Φ,380v,50HZ | 3Φ,400v,50HZ | ||
Material Feeding Capacity(kg/h) | 300 | 400 | 400 | 550 | 600 | ||
Suction Lift(M) | 4 | 4 | 4 | 4 | 4 | ||
Static Air Pressure(MAX) | 1500mm/HZO | 1800mm/HZO | 1800mm/HZO | 1800mm/HZO | 3000mm/HZO | ||
Storage Tank Capacity(L) | 6 | 10 | 7.5 | 7.5 | 10 | ||
Internal Diameter of Conveying Pipe(mm) | Φ38 | Φ38 | Φ38 | Φ38 | Φ38 | ||
Overall Diamension(mm) | Hopper | / | / | 460x380x550 | 460x380x550 | 460x380x700 | |
Main Unit | 400x360x600 | 400x300x500 | 400x300x440 | 400x300x440 | 500x400x600 | ||
Weight(kg) | 11 | 28 | 55 | 65 | 85 | ||
