Test Probe Pogo Pin Connector spring loaded pogo pin

Advantage of pogo pin:

Spring Loaded Pogo Pin, test pin, contact probe and receptacle are developed especially for testing electrical requirements in a veriety of applications. They provide a reliable means to test in bare or loaded printed circuit boards and other circuitries where a number of contact points must be accessed.

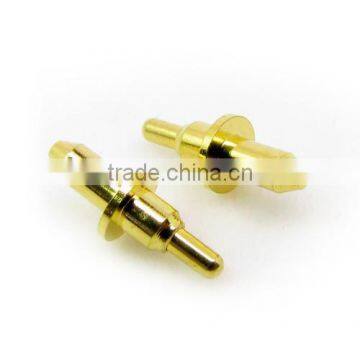

 Photo of pogo pin:

Material and Plating Treatment:

Barrel: Brass, Bronze, Beryllium Copper

Plunger: Brass, Bronze, Beryllium Copper

Spring: Stainless steel, Music wire

Pleating Treatment: Nickel-plated or gold-plated over nickel

Technical Specification:

Head Style: Concave, Convex, Flat, Spear Point, Serrated, Star, Spherical Radius

Diameter of Barrel: 0.68mm, 1.01mm, 1.37mm, 2.02mm, 2.36mm

Spring Pressure: 80g, 100g, 150g, 200g, 250g

Reference: Pogo Pin connector, Test Probe, Contact Probe, pin connector, cnc machining pogo pin and probe

***********************************************************************************

<<Model: OEM-038>>

Material

Material of Plunger: Brass, gold-plated

Material of Barrel: Brass, gold-plated

Material of Spring: Stainless steel

Technical Specification

Size: 2.5x6mm

Full Travel: 2.0mm

Spring Pressure(+/- 20%): 40g

Current Rating: 2A, continuous

***********************************************************************************

<<Model: OEM-036>>

Material

Material of Plunger: Brass, gold-plated

Material of Barrel: Brass, gold-plated

Material of Spring: Stainless steel

Technical Specification

Size: 3x8mm

Full Travel: 3mm

Spring Pressure(+/- 20%): 60g

Current Rating: 5A, continuous

Contact Resistance: <40m ohm

Why Select us:

1. Good quality stainless steel product

2. Unique design

3. Professional manufacturer

4. Immediate quotation

5. Competitive price offer

6. prompt delivery

7. More than 30years experiences

What we guarantee:

F.A.Q.:

 1.Q: what kind of payments do you use?

   A: we accept Paypal, T/T ONLY

  2.Q: how do you deliver the goods to my country?

   A: we can provide international express, such as DHL, EMS, UPS, Fedex, etc. We select air freight and sea freight upon your request if the weight of goods are heavy. All the freight charge will be debit to you and your account.

3.Q: I want to buy your products, but i like another style, can you make it for me? What is your MOQ?

   A: Since we are manufacturer, we can special made according to your drawing provided or actual samples, MOQ is depend.

4.Q: I want to buy your products, but i like another style, can you make it for me? What is your MOQ?

   A: Since we are manufacturer, we can special made according to your drawing provided or actual samples, MOQ is 5,000pcs or above.

If you have any inquiry, please do not hesitate to contact our sales team
