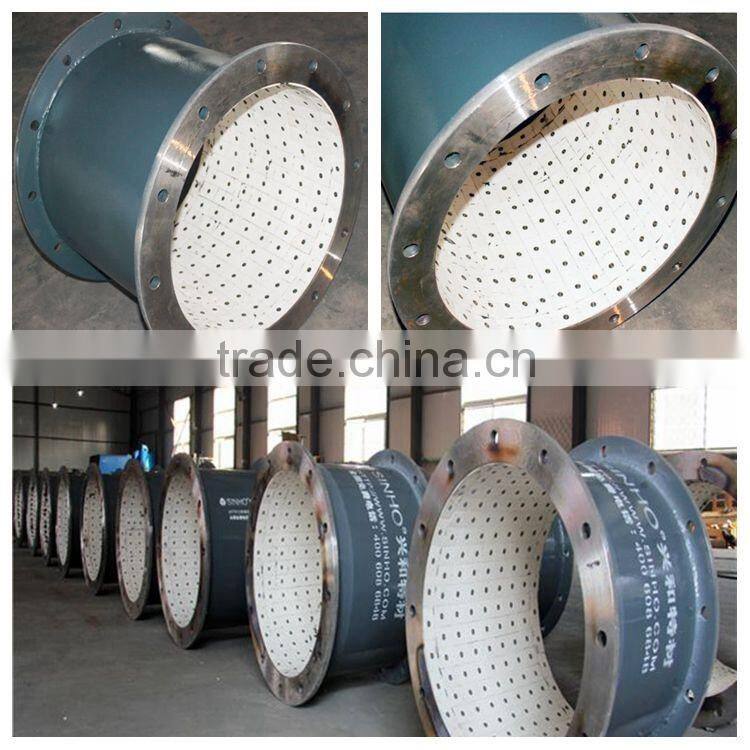

Wear Protection 95% Alumina Ceramic Lined Steel Tube Fitting

SHP-P wear-resistant ceramic pipe

The most cost effective wear resistant for elbow and tee

Sinho use paste, welding or dovetail to fix wear-resistant ceramic on the inner wall of the pipe, forming a strong anti abrasion layer. With superior wear resistance it has been widely used in industrial enterprises pneumatic conveying, hydraulic transmission system, especially the erosion site of the elbow, tee, and distributor. It is one of the best channels with its cost effective.

Using temperature

Paste: below 300℃

Welding: below 600℃

Dovetail: below 800℃

Suitable medium

Solid particles such as coal powder, ash, slag and slurry, such as coal slurry, slag, and liquid aluminum.

Application

Widely used in metallurgy, mining, electricity, coal, petrochemical and other industries, gas solid, liquid solid conveyor system, especially for serious damage occurs on the elbow, three links.

Product Features:

Excellent wear resistance

Adopting alumina ceramics as liner, the lifetime of the pipe is above 10 times than normal hardened steel.

Corrosion resistance

Alumina ceramic has advantages of seawater erosion, acid and alkali resistance, also scaling protection.

Friction promotion

Inner surface smooth and without erosion, the inner smoothness of pipes is superior to any other metal pipes.

Using temperature

The SHP-P compound pipe can be long time running under a temperature range of -50--800℃.

Light weight

The weight of SHP-P compound pipe is just arriving at half of casting stone pipe and approximately 50% of alloy pipe. With advantages of wear and corrosion resistance, the lifetime of SHP pipe is outstandingly longer than other wear resistant pipes hereby the cost of assembly and running is largely reduced.

Easily assembly

Due to its light weight and good weld ability, it can be assembled easily with welding or flange connection and remarkably reduce the fixing cost.

SHP-O ceramic pipe

SHP-O ceramic pipe fixed the whole ceramic pipe after firing on the steel pipe inner with a special filling material. The pipe inner is smooth, with good sealing, wear resistance, and corrosion resistance.

Using temperature

-50℃ -1000℃

Suitable medium

Solid particles such as coal powder, ash, slag and slurry, such as coal slurry, slag, liquid aluminum and so on.

Application

It is widely used for gas, liquid and solid conveying system of metallurgy, mining, electric power, coal, and petrochemical, particularly suitable for wear and corrosion seriously occasions. Such as: thermal power plant desulfurization system conveying the limestone slurry, mineral industry, pulp conveying, chemical industry transportation with strong corrosive acid, alkali and other grout.

SHH high temperature ceramic

The best wear protection material at high temperature

SHH high temperature ceramic has unique superiority of strong antioxidant activity, good wear resistance, high hardness, good thermal stability, high temperature strength, low coefficient of thermal expansion, thermal conductivity and thermal shock resistance and chemical corrosion resistance at high temperatures..

Sinho unique technology to make ceramic has a low coefficient of thermal expansion and high thermal conductivity, so that the products in the heating and cooling process by the thermal stress is smaller, which is the reason that SHH high temperature ceramic has particularly thermal shock resistance.

Application

It can be used as a bearing ball, roller, ball seat, tooling, new ceramic cutting tools, piston pump, sealing material in the machinery industry;

It can be used to produce three times air valve plate and preheater inner tube in the cement industry,;

It can be used as wear and corrosion resistant components, such as ball valve, pump body, combustion carburetor and filter in the chemical industry.

It can be made for metal material processing of mould and die making, such as extubation, mandrel, extrusion, dial wire mould, roll, conveying roller, heating body fixture, thermal couple casing pipe, metal heat processing support, crucible, liquid aluminum tube, aluminum coated line r in metallurgical industry.

It can be used for armored vehicles, aircraft belly, bullet proof clothing, rocket exhaust nozzle and other high temperature work in aerospace industry;
