Block Ice Machine 8tons/day

Specifications

Commercial block ice machine is a highly efficient refrigeration unit, which mainly aim at the area such as Africa, Middle East and Oceania where has a big demand in ice. Commercial block ice machine adopts integrated design, having easy installation, just connecting the power and water pipe to use. It has the following features:

1.Ice making tank adopts 80mm thickness polyurethane insulation material and has good stickiness and effect in heat insulation.

2. As for coil tube evaporator type block ice machine, we use big power water agitator to replace the common water pumps. It faster the brine flowing so that shorten the ice frozen time and improve the refrigeration effect of the whole machine.

3. The linear design for the ice plant, such as put the refrigeration unit, ice making tank, crane system, ice pouring shelf, water filling box and cold room in a line, will maximize the investment on manpower and reduce the whole cost.

Brine system block ice machine structure and application:

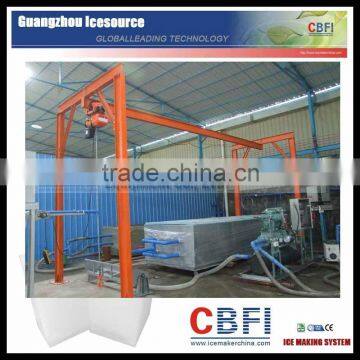

(1)Brine system block ice machine structure: refrigeration unit, brine tank (ice making tank), water cooling tower/ air cooling fan, and necessary components. We will prepare the three in unit, you just need to connect the power and water pipes for the three parts. Pleas see the picture in the attachment.

(2)Daily production: 1 ton per day to 100 tons per day. And if the capacity is more than 20 tons per day, it cannot ship the whole machine in container. So we do the local installation and construction in your place.

(3)Weight of block ice: 2.5kg,5kg, 10kg, 20kg…100kg, also can be done as your requirement.

(4)Power form supply: 380V/50HZ/3P, Refrigerant R22/R404a.

(5)Application: the block ice is use to reduce temperature, especially in Africa country where the power is not stable and the climate temperature is high. When the power is off, people use the block ice to cooling the drinking and beverage. And block ice is also used to keep fish fresh or crushed into small pieces to fresh vegetable and fruit.

                                                                                   Refrigeration Unit

    Our factory was located in Panyu District of Guangzhou, Guangdong Province, it is near two famous port of South China Huangpu Port and Nansha Port, and not far from Baiyun airport. It is convenient for load and transport goods and for customers come to visit our factory.

    Our company is specialize in research, design, produce and sell large production ice cube machine, ice block machine, ice plate machine, ice tube machine and shaved ice machine, and its accessory equipment, for example cold room, crane, ice crushing machine and so on. Machine's output design can start from single small ice machine for produce 1ton ice per day to large scale completely ice making system for produce 50tons ice per day. All components from choosing raw material to processing and finished products, all pass strict inspection, strict quality control, ensure completely ice system with excellent quality. The products are widely applied to different fields, such as food industry, large chain supermarket, retail, aquatic product, chemical industry, water conservancy, power plant, health care, large public project, mine cooling, chemical industry, etc.

     Independent research and design is the source of technology to update, our company has owned two patented technologies: flat-plate heat exchange and circulating heat gas for ice dropping. These two patents have greatly improved the stability and safety of our ice making machine and ensure machine prominently energy saving, its energy saving rate is more than 30%.It start new generation of energy saving product. Icesource products have passed ISO9001, ISO14001 and CE certificate. We have been keep tracking service condition of our products, have record for more than 400customers in more than 30countries from Africa, Middle East, Southeast Asia, Australia and South America. It bring us rich experience and and valuable data to improve our products for different environment condition.

     Icesource take "painstakingly created high quality products and wholehearted service" as company tenet, keep developing and perfecting our sales system and after-sale service system, Combined with own advantages, continuous learning foreign mature sales experience and cater to domestic and international market trends and demands. Company adhere to the principle of equal emphasis on social and economic benefits. We will try our best offer customer timely and comprehensive service and support.

      Icesource adhere“people oriented, technology first"corporate ideas, view customer's practical needs, improving people life quality and environment for human being existing as a duty. Gathering strong technology, professional talent, and advanced facilities, continuously improve making ice technology, to be leader of ice machine industry.
