Product Details
Brand Name | YJS | Model Number | VGA extender | |
Place of Origin | Guangdong, China |
Product Description
Hot selling 100m VGA Extender 1x1 with Audio Output by Single Cat5e/6

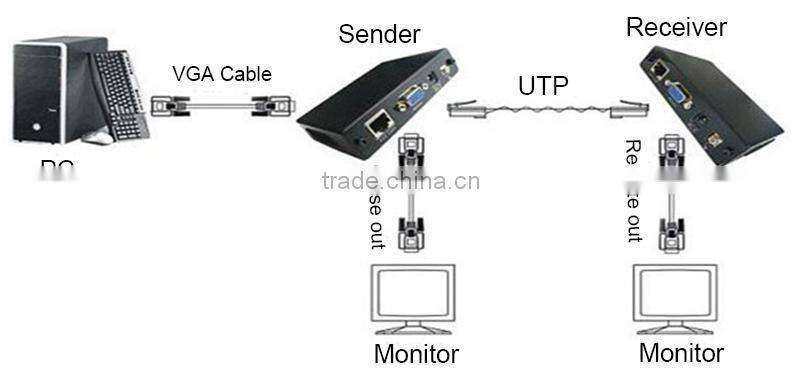

This VGA UTP Extender 1X1 Splitter with Audio is an ideal device for local displaying and remote viewing. It combines split function and extension function. It distributes the input of the VGA signal and audio signal into the local and remote outputs simultaneously.
Receiver by Cat5 x1 works with the Sender as a full functional module by receiving the distributed signal from the sender and transmitting to display. Only by the most inexpensive UTP cable with cross stand side, the full functional module extend the VGA display max up to 300 meters.
Features
*Extend VGA video and stereo audio signal max up to 300m over one UTP cable with cross stand inside
*Adjusting GAIN and PEAK to adapt for the different length of UTP cable.
*GAIN: Brightness adjustment.
*PEAK: Skew adjustment.
*Supports resolution max up to 1920x1200.
*Dual output at local unit: 1 x VGA output for local site, plus 1 x UTP output for remote site.
*Work with monitors projectors, HDTV, and flat panels
Specification:
Product Name | 1080p VGA Extender Via UTP Cable |
Model NO. | Winkasing |
Input connector | VGA(Female 15pin), Stereo Audio |
Output connector | VGA(Female 15pin), Stereo Audio,1xRJ45 |
Vertical Frequency Range | 60/75/85Hz |
Resolutions(PC) 640X480 800X600 1024X768 1280X720 1280X768 1280X960 1280X1024 1600X900 1600X1200 1920X1080 1920X1200 | |
Size of VGA UTP Extender 1X1 Splitter | 100×65×25.5mm |
Weight of VGA UTP Extender 1X1 Splitter | 208g |
Size of Receiver (L-W-H) | 81.5×43×23MM |
Weight of Receiver (Net) | 108g |
Limited Warranty | 1 Year Parts and Labor |
Operating Temperature | 0°C to +70°C |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10°C to +80°C |
Storage Humidity | 5% to 90 % RH (no condensation) |
Power Supply for VGA UTP Extender 1X1 Splitter | 9V, max 5W |
Power Supply for Receiver | 9V, max 5W |
Converter Unit | FCC,CE,UL |
Power Supply | UL,CE,FCC |
AC Power Adapter | US standard, UK standard and so on |
User Manual | English Version |
