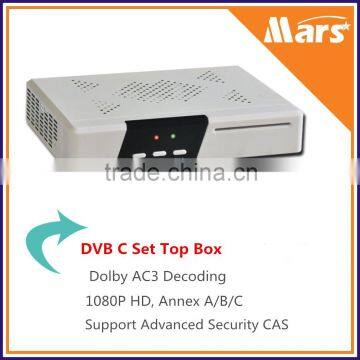

Novel supertv NSTV DVB C Set Top Box MPEG4, Cable TV Set Top box
- Shenzhen port
- T/T D/P D/A
You May Like
-
Novel supertv NSTV STB DVB-C H.264 HD, Cable TV DVB-C Set Top Box Quality Choice
-
NSTV novel supertv Digital head end Set top box DVB T2 Encoder, STB DVB T2
-
MPEG4 HD Setup box DVB T2
-
DVB-S2 digital HD Satellite Receiver MPEG4 for PAY-TV system
-
MPEG4 HD Set top boxes DVB-S2 for PAY-TV Satellite Services
-
CATV Mstar MSD 5029 H.264 HD STB Cable Receiver,DVB-C MPEG4 STB
Product Details
Place of Origin | Guangdong, China | Brand Name | OEM | |
Model Number | MSHC1211-6 | FTA(Free To Air) | Yes | |
Type | Digital |
Product Description
Set top box:
√ MPEG-4 HD & SD DVB-C/ T (MMDS)
√ MPEG-4 HD & SD DVB-T2
√ MPEG-4 HD & SD DVB-S2
√ MPEG-4 HD DVB-C + T2 Combo
√ MPEG-4 HD DVB-T2 + S2 Combo
√ MPEG-4 HD ISDB-T
Value added-ons Service:
√ CAS Porting Service;
√ Software development in Middleware
For high quality CAS porting service you may need, contact us today.
picture of DVB C Set Top Box
√ HD DVB-C/T compatible
√ Advanced, full featured HD Cable Receiver
√ Main Processor: MSD5029 (Mstar Semiconductor)
√ CAS Embedded, optimized for pay-TV cable services
√ Embedded in NSTV Novel superTV CAS or others
√ USB, PVR, OTA upgrading
Features of DVB C Set Top Box
USB 2.0 Host Support (PVR, MP3 Player & Picture Viewer) |
Recording & Playback with External USB 2.0 Devices |
Time Shift with External USB 2.0 Devices |
Recording and Time shift simultaneously |
Support EPG (Electronic Program Guide), Event recording by EPG |
Fully DVB Compliant & MPEG-2/H.264 |
On-screen Display with 16 bit Color Full Resolution |
Favorite Service group |
Powerful service control by Favorites, Lock, Skip, Move, Rename and Delete |
Service Sorting by LCN, Service ID, Network ID and Service Name |
Multi-Language Supported (OSD & Menu) |
Tele text, Subtitle Support |
Maximum 1000 services programmable |
Multi-picture Display |
Parental lock |
HD output, CVBS Video & Audio Output via RCA |
Software & Service Database Transfer via USB |
Specification of DVB C Set Top Box
Tuner & Channel
Input Connector: | F-type, IEC 169-24, Female |
Loop through Out: | IEC 169-1, Male |
Frequency Range: | 50MHz-862MHz |
Demodulation: | QAM |
Input Symbol Rate: | 1-7 Msp/s |
Bandwidth: | 7 / 8 MHz |
Modulation Format: | 16, 32, 64, 128, 256 QAM |
Transport Stream A/V decoding
Transport Stream: | MPEG-2 ISO/IEC 13818, ITU-Th.264 |
Profile Level: | MPEG-2 MP & ML, H.264 Main Profile and High Profile & Leve14.0 |
Input Rate: | Max. 20Mbit/s |
Video Resolution: | 4:3 LetterBox 4:3 PanSacn, 4:3 Full Screen, 16:9 |
Audio Decoding: | MPEG-1, MPEG-2(Layer I & II), MP3, AC3, DD+, AAC-LC, HE-AAC |
Audio Mode: | Stereo/ Joint Stereo/Mono |
Sampling Rate: | 16, 22, 05, 24, 32,44,1KHz and 48KHz |
Main System:
Main Processor: | MSD5043 (Mstar Semiconductor) |
Memory: | FLASH-ROM 4M/ 8Mbytes | DDR3: 128Mbytes |
Audio / Video & Data In / Out:
HDMI: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080P |
RCA: | CVBS Video, Audio L, R Output |
USB: | USB2.0 Host Support |
Front Panel
Slot: | 1 Smart Card Slot |
Buttons: | 3 Buttons (Standby, CH UP / DOWN) |
Display: | None |
Indicators: | 2 LEDs (Standby: Red, working: Green) |
Multimedia Format Supported:
Video: | mpg,mpeg,dat,ts,trp,tp,m2ts,m2t1,vob,mov,rmvb,rm,mkv,avi,flv,3gp |
Audio: | MP3, OGG, AC3, M4A/AAC, WMA/ASF |
Photo: | JPG, JPEG, JPE, BMP, PNG |
Power Supply:
Input Voltage: | DC 12V/1A |
Type: | SMPS |
Power Consumption: | Max.12W |
Standby Power: | Max. 1W |
Protection: | Separate Internal Fuse & Lighting Protection |
Physical Specification:
Size (W x D x H): | 170mm * 115mm *32mm |
Operating Temp.: | 0℃- + 45℃ |
Storage Temp.: | -10℃- - + 70℃ |
More DVB C Set Top Box
Customized your own HD and SD DVB ( DVB-C, DVB-T2, DVB-S2 ) from our strong R & D team
With a team of experienced software engineers on staff, we are constantly researching and providing Receiver DVB-C, DVB-T2, DVB-S2 the lastest and better
We are an R & D-oriented supplier, specializing in DVB (HD & SD DVB-C, DVB-T2/T, DVB-S2) Research & Development, Production.
Strong R & D capability is the key reason behind our success. All software & hardware are designed by our self high-quality technical team that why we're able to make product customization according to customer's needs, as well as continuously supplying technical supports & services to customers.
Strong R & D Strength behind Your Orders:
Our R & D technician develop our own DVB in-house. The software development team can handle almost every aspect of DVB software stack starting from bottom most layers to top most layers, allowing us to smoothly integrate just what features you require.
Our main objective now is for PAY-TV operator. Our DVB boxes (DVB-C/T2/S2) have made their way into hundreds thousand of homes throughout Europe, the Americas, Asia, and Africa through our client base of over 90 operators in 25 countries and regions. To support the volume requirements of these buyers, we produce up to 100,000 DVB receivers monthly.
Buy from China’s DVB C Set Top Box expert, contact us today!
Service:
√ We provide 1 year warranty of products and shipment with 1% spare parts.
√ During the warranty period, repair or replace the faulty boxes and software maintains & upgrades for free. We can discuss for any additional requirements from customers.
√ After the warranty, we only charge material cost fee for hardware and spares. Fixing minor bugs of software is free. The charges will be negotiated for large changes in design.
