Home > Products > jaw crusher > High performance PEX series fine crusher, mini jaw crusher for fine crushing
High performance PEX series fine crusher, mini jaw crusher for fine crushing
- qingdao
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Type | Jaw Crusher | |
| Application | stone,ore,limestone,CACO3,ore,concrete,granite | Motor Type | AC Motor | |
| Power(W) | 30kw | Capacity(t/h) | 15-50 ton/hour | |
| Place of Origin | Shandong, China | Brand Name | Hysan | |
| Model Number | ZG-PEX-250*1000 | Dimension(L*W*H) | 1550*1990*1370mm | |
| Weight | 5.6 ton | Certification | ISO9001-2008 | |
| Warranty | one year excluding wearing parts | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
High performance PEX series fine crusher, mini jaw crusher for fine crushing1. PEX series Fine crusher
2. mini jaw crusher
Technical Data
model
| Input size (long*width) (mm) | Output size (mm) | Biggest feeding granularity (mm) | Production (T/h) | Eccentric shaft speed (r/min) | Motor power (KW) | Size (long*width*high) (mm) | |
ZG-PE-250*400 | 250*400 | 20-60 | 200 | 8-16 | 300 | 15 | 1430*1316*1296 | |
ZG-PE-400*600 | 400*600 | 40-100 | 350 | 14-36 | 275 | 30 | 1700*1732*1656 | |
ZG-PE-500*750 | 500*750 | 50-120 | 400 | 30-80 | 250 | 55 | 1900*1876*1821 | |
ZG-PE-600*900 | 600*900 | 75-200 | 480 | 56-192 | 250 | 55 | 2280*2180*2380 | |
ZG-PE-800*1000 | 800*1000 | 80-200 | 600 | 70-195 | 250 | 75 | 2550*2280*2380 | |
ZG-PE-750*1060 | 750*1060 | 80-235 | 630 | 105-260 | 250 | 90 | 2655*2302*2900 | |
ZG-PE-900*1200 | 900*1200 | 95-265 | 750 | 150-500 | 220 | 110 | 3170*2900*3250 | |
ZG-PE-1100*1400 | 1100*1400 | 150-300 | 1000 | 350-800 | 180 | 160 | 4200*3020*3900 | |
ZG-PE-1200*1500 | 1200*1500 | 150-300 | 1100 | 400-1000 | 180 | 200 | 3800*3120*4155 | |
ZG-PE-500*1500 | 500*1500 | 50-120 | 400 | 60-160 | 300 | 90 | 2250*2680*1920 | |
| 250*400 | 20-60 | 210 | 8-16 | 300 | 15 | 1108*1090*1392 | |
PE-250*1000 | 250*1000 | 20-50 | 210 | 15-50 | 300 | 30 | 1550*1990*1370 | |
PE-250*1200 | 250*1200 | 20-60 | 210 | 20-70 | 250 | 37 | 1530*2285*1625 | |
PE-400*600 | 400*600 | 40-100 | 350 | 14-36 | 275 | 30 | 1650*1715*1591 | |
| 500*750 | 50-120 | 425 | 30-80 | 250 | 55 | 2250*1980*1920 | |
PE-600*900 | 600*900 | 75-200 | 500 | 56-192 | 250 | 55 | 2560*1840*2320 | |
PE-750*1060 | 750*1060 | 80-235 | 630 | 108-256 | 250 | 90 | 2380*2550*2800 | |
PE-900*1200 | 900*1200 | 95-265 | 750 | 186-398 | 220 | 110 | 2960*2930*3265 | |
ZG-PEX-150*750 | 150*750 | 10-40 | 120 | 8-25 | 320 | 15 | 1210*1572*1045 | |
ZG-PEX-250*1000 | 250*1000 | 20-50 | 210 | 15-50 | 330 | 30 | 1550*1990*1370 | |
ZG-PEX-250*1200 | 250*1200 | 20-60 | 210 | 20-70 | 320 | 37 | 1530*2285*1625 | |
ZG-PEX-300*1300 | 300*1300 | 30-80 | 250 | 30-90 | 330 | 45 | 1530*2380*1720 | |
ZG-PEX-300*1500 | 300*1500 | 35-100 | 250 | 40-120 | 320 | 55 | 1900*2600*1780 | |
ZG-PEX-350*750 | 350*750 | 20-80 | 300 | 30-52 | 320 | 37 | 1650*1680*1655 |
Technical data of PEX series Fine crusher is just for reference.

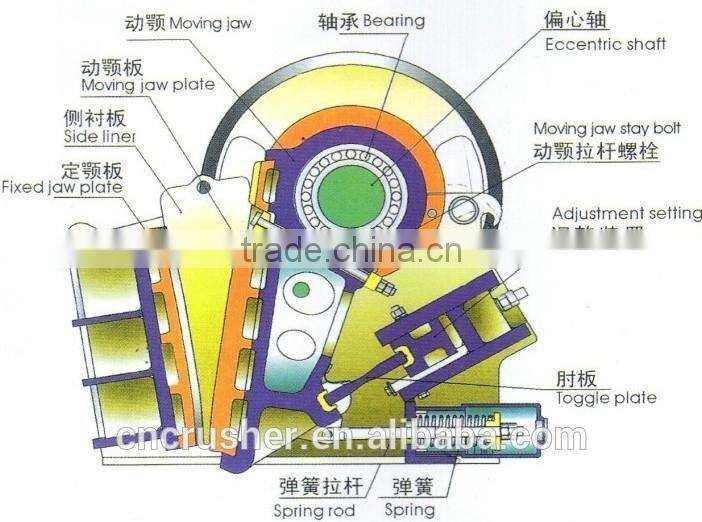

The working part of the PEX series Fine crusher is two pieces of jaw plate, one is stationary and fixed on the front wall of machine body, which is called fixed jaw, while the other one, swing jaw, making a crushing chamber with the fixed jaw, moves back and forth periodically. When separating, the material enters into the crushing chamber and then the particle drops out from the bottom; when combined, the material is crushed by the compressive force, buckling and split effect from the jaw plate. The jaw crusher series are used for the primary and secondary crushing of hard material. There are two types of crusher, including coarse jaw crusher and fine jaw crusher.
To choose the appropriate model for you, we need to know the following information:
1. What's the raw materials(such as granite) and its size(mm/inch)?
2. What's the discharging size? 0-5, 5-10, 10-15, 15-30mm?
3. What's the required Capacity(tons per hour or TPH)?
4. Other special requirements.
Packing and shipping
Standard Export Packaging and Shipping

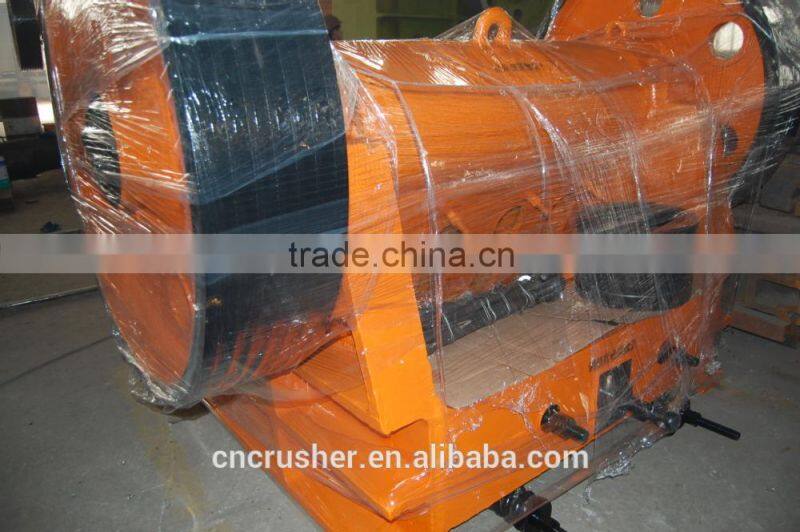

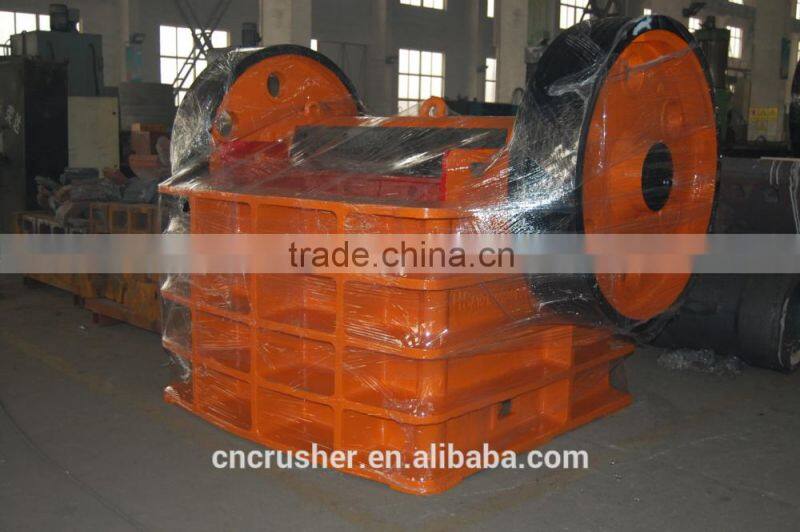

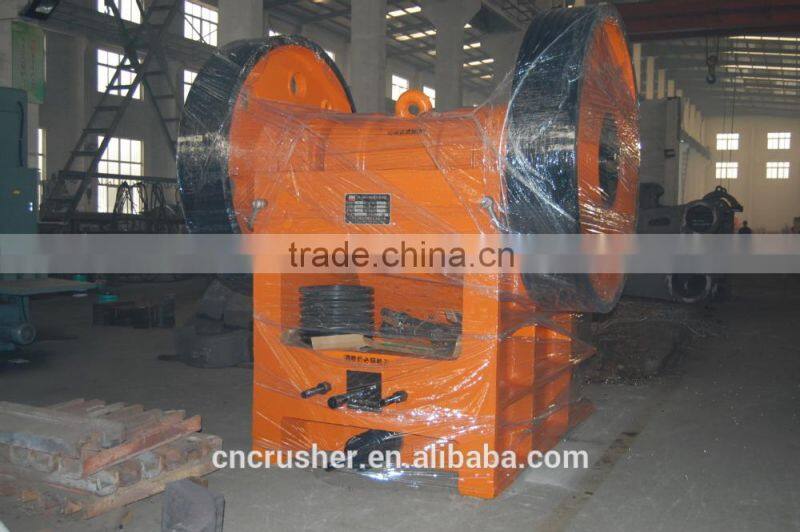

The products should be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates; the big parts are wrapped by plastic sheeting.
Delivery time: 25 days.
Payment term: 1> L/C 2> T/T 3> D/P
Product Image
