Mining Machinery From China Manufacturer Best Jaw Crusher

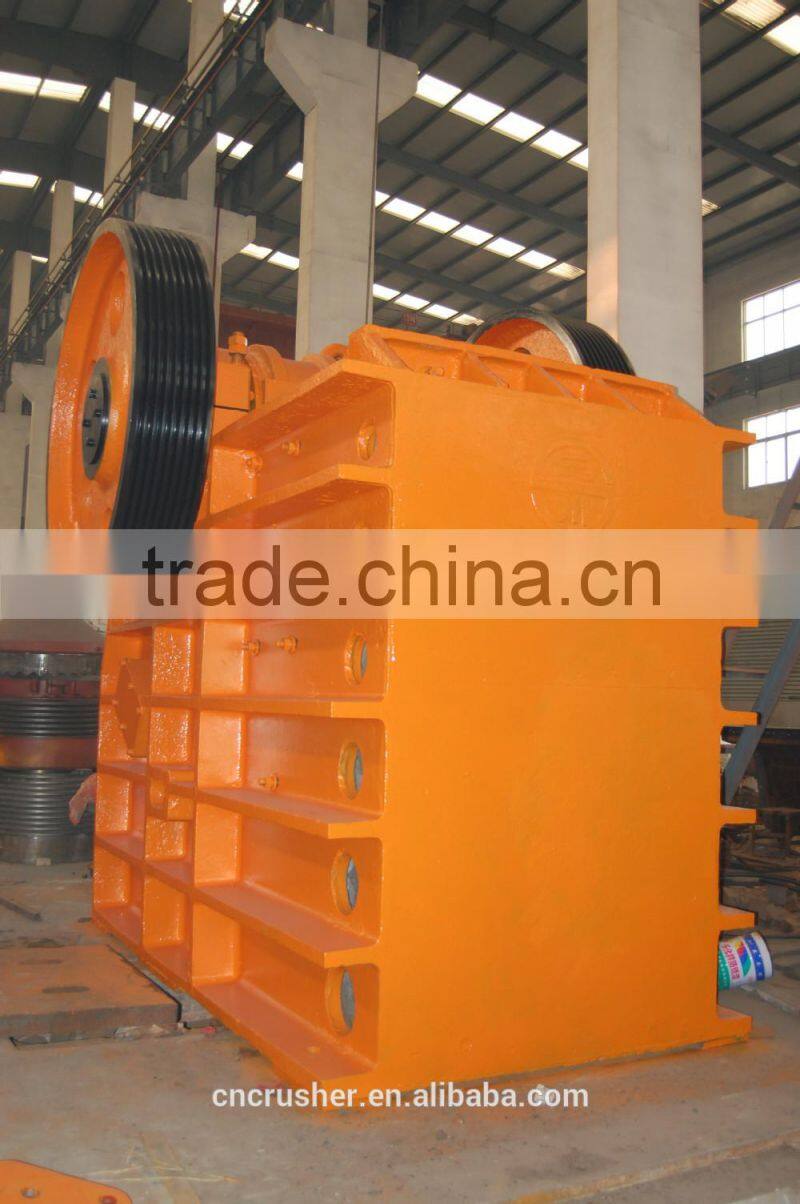

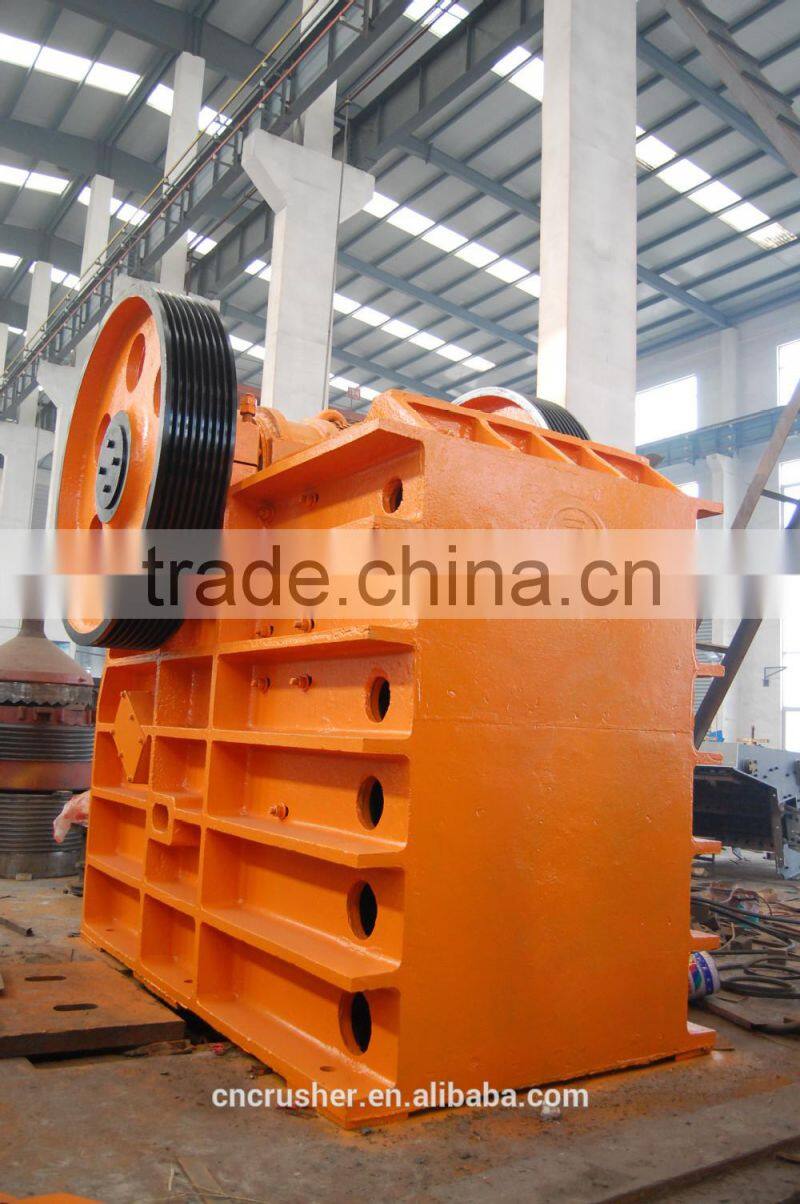

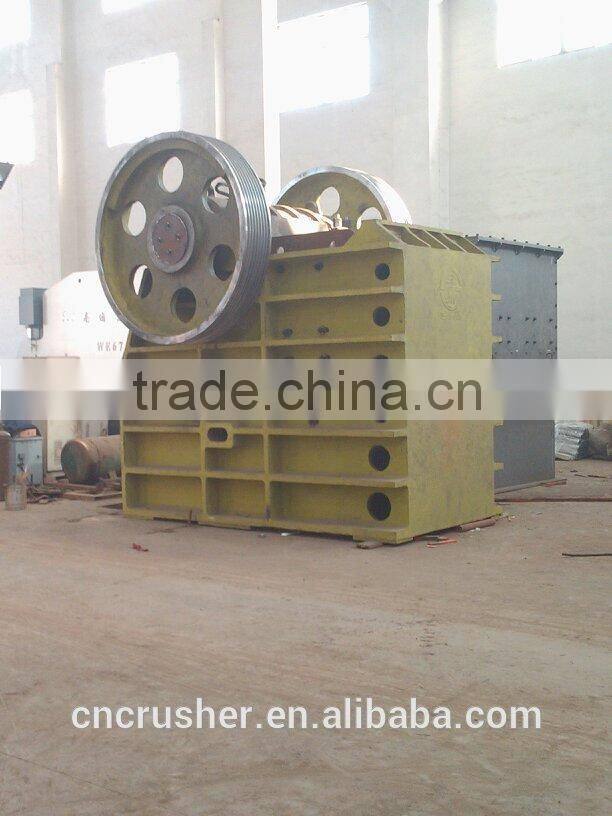

Jaw crusher

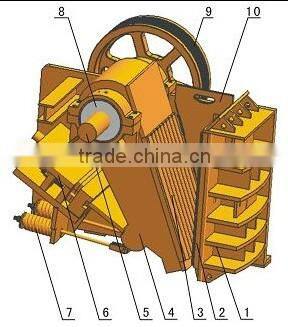

The working part of the jaw crusher is two pieces of jaw plate, one is stationary and fixed on the front wall of machine body, which is called fixed jaw, while the other one, swing jaw, making a crushing chamber with the fixed jaw, moves back and forth periodically. When separating, the material enters into the crushing chamber and then the particle drops out from the bottom; when combined, the material is crushed by the compressive force, buckling and split effect from the jaw plate. The jaw crusher series are used for the primary and secondary crushing of hard material. There are two types of crusher, including coarse jaw crusher and fine jaw crusher

modeL

Feeding port size

(long×width)(mm)

Discharging

Mouth size

(mm)

Biggest feeding granularity

(mm)

Production (T/h)

Eccentric shaft speed

(r/min)

Motor power

(KW)

Envelop dimensions (long×width×high)

(mm)

SHPE-400×600

400×600

40-100

350

14-36

275

30

1650×1715×1591

SHPE-500×750

500×750

50-120

425

30-80

250

55

2250×1980×1920

SHPE-600×900

600×900

75-200

500

56-192

250

55

2560×1840×2320

PEX-250×1000

250×1000

20-50

210

15-50

300

30

1550×1990×1370

PEX-250×1200

250×1200

20-60

210

20-70

250

37

1530×2285×1625

ZG-PE-250×400

250×400

20-60

200

8-16

300

15

1430×1316×1296

ZG-PE-400×600

400×600

40-100

350

14-36

275

30

1700×1732×1656

ZG-PE-500×750

500×750

50-120

400

30-80

250

55

1900×1876×1821

ZG-PE-600×900

600×900

75-200

480

56-192

250

55

2280×2245×2320

ZG-PE-800×1100

700×1100

80-200

600

70-195

250

75

2550×2280×2380

ZG-PE-750×1060

750×1060

80-235

630

105-195

250

90

2655×2302×3110

ZG-PE-900×1200

900×1200

95-265

750

90-220

220

110

3800×3160×3050

ZG-PE-1100×1400

1100×1400

150-300

1000

150-340

180

160

4200×3020×3900

ZG-PE-1200×1500

1200×1500

150-300

1100

200-500

180

200

4100×3120×4155

ZG-PEX-150×750

150×750

10-40

120

8-25

320

15

1210×1572×1045

ZG-PEX-250×1000

250×1000

20-50

210

15-50

330

30

1550×1990×1370

ZG-PEX-250×1200

250×1200

20-60

210

20-70

320

37

1530×2285×1625

ZG-PEX-300×1300

300×1300

30-80

250

30-90

330

45

1530×2380×1720

ZG-PEX-300×1500

300×1500

35-100

250

40-120

320

55

1900×2600×1780

ZG-PEX-350×750

350×750

20-80

300

30-52

320

37

1650×1680
