Taizhou Supplier High Quality Thin Wall Bowl Mould

Specifications

     ENA mould is specializing in crate mould, pallet mould, paint bucket mould, food container mould, flower pot mould and garbage bin mould. For the detailed of the company information, please view our ‘’company profile’’ on alibaba carefully. You will get a completed view of this company.

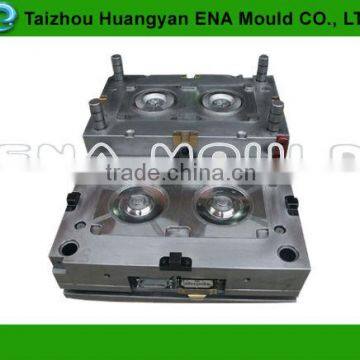

Thin wall bowl mould

1. Detailed description of the Food Container Mould:

Basic mould information:

There are three levels of mould quality for your option.

Option A:  Level A quality(Highest Level Quality)

Mould Base: LKM,45# Steel

Core/Cavity: S136+Becu

Slider/Insert: S136

Mould spare parts: SKD

Hot Runner: YUDO

Mould Life:1,000,000 shots

Cycle Time:20s

Option B: Level B quality(Middle Level Quality)

Mould Base: 45# Steel,self-made

Core/Cavity: 718H

Slider/Insert: 718H

Mould spare parts: Jinghong, China

Hot Runner: Hongying,China

Mould Life:800,000 shots

Cycle Time:22s

Option C: Level C quality(Lowest Level Quality)

Mould Base: 45# Steel,self-made

Core/Cavity: P20

Slider/Insert: P20

Mould spare parts: Jinghong,China

Hot Runner: Hongying,China

Mould Life:500,000 shots

Cycle Time:23s

Attention pls:

Price varies in different quality level. When you send us the mould inquiry, please offer the following information:

1) Quality level you choose: Level A/Level B/Level C

2) food container Photo

3) food container Dimension: L*W*H

4) Wall thickness

2. Food Container Mould Making Process

 Total: It is 30 days for first mould testing after mold design is confirmed.

3.1 DESIGN STAGE                               3.2 MACHINING STAGE

3.3 Mould Testing

3. Food container Mould Quality Control

For the Q/C of mould, there are 3 steps:

1. Mould Material Q/C

- Mould Steel Checking (Hardness, flaw detection)

- Mould Standard Spare Parts Checking (hardness, size, flaw checking)

2. Mould Making Process Q/C

- design checking (part design, mould design, mould engineering drawing)

- Each part of mould’s size checking after machining according to 2D drawing

- mould testing (check mould running condition)

3. Check with customer’s requirement again before mould shipping.

4. Food container Mould Pack and Shipping

Anti-rust oil is painted first, then Plastic film, and finally Wooden Case.

Sent together with the mould:

a)      Mould manual instruction

b)      engineering drawing in flash disk

c)      One more set of mould spare parts: heater, ejector pin, bush, water nozzle, water pipe, hanging ring.

5. Food container Mould Maintenance

a) When the mould is vacant, spray the anti-rust oil

b) To clean the gate and cooling system regularly

c) Avoid to use recycled material if the mould is suitable for virgin material only

6. After-Sale Service

 a) one-year after-sale technique support
