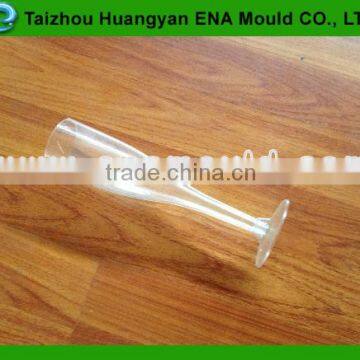

Plastic Injection Goblet mould

There are three levels of mould quality for your option.

Option A:  Level A quality (Highest Level Quality)

Mould Base: LKM, 45# Steel

Core/Cavity: S136+Becu

Slider/Insert: S136

Mould spare parts: SKD 61

Hot Runner: YUDO

Mould Life: 1,000,000 shots

Cycle Time: 28s

Option B: Level B quality (Middle Level Quality)

Mould Base: 45# Steel, self-made

Core/Cavity: 718H

Slider/Insert: 718H

Mould spare parts: China Brand

Hot Runner: China Brand

Mould Life: 800,000 shots

Cycle Time: 30s

Option C: Level C quality (Lowest Level Quality)

Mould Base: 45# Steel, self-made

Core/Cavity: P20

Slider/Insert: P20

Mould spare parts: China Brand

Hot Runner: China Brand

Mould Life: 5,000,000 shots

Cycle Time: 32s

Attention pls:

Price varies in different quality level. When you send us the mould inquiry, please offer the following information:

1) Quality level you choose: Level A/Level B/Level C

2) Paint Barrel  Photo

3) paint Barrel  capacity

4) paint Barrel wall thickness

Mold Making Process

 Total: It is 50 days for first mould testing after mold design is confirmed.

Mold Quality Control

For the Q/C of mould, there are 3 steps:

1. Mould Material Q/C

   - Mould Steel Checking (Hardness, flaw detection)

   - Mould Standard Spare Parts Checking (hardness, size, flaw checking)

2. Mould Making Process Q/C

   - design checking (part design, mould design, mould engineering drawing)

   - Each part of mould’s size checking after machining according to 2D drawing

   - mould testing (check mould running condition)

3. Check with customer’s requirement again before mould shipping.

Mold Pack and Shipping

Anti-rust oil is painted first, then Plastic film, and finally Wooden Case.

Sent together with the mould:

a)      Mould manual instruction

b)      engineering drawing in flash disk

c)      One more set of mould spare parts: heater, ejector pin, bush, water nozzle, water pipe, hanging ring.

Mold Maintenance

a) When the mould is vacant, spray the anti-rust oil

b) To clean the gate and cooling system regularly

c) Avoid using recycled material if the mould is suitable for virgin material only

After-Sale Service

 a) one-year after-sale technique support
