Water Filter Fabric in Geotextiles

FOB Price

US$ 0.25 - 20 / Square Meter

50 Square Meters(Min. Order)

Port Tianjin or other ports
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	Shangshai
Model Number	Filter mesh	Usage	Liquid Filter
Type	Filter Elements	Material	Polyester
Hole Shape	Square	Filter Rating	21%-56%
Thickness	85-1000um	Length	customized
Width	cunstomized

Product Description

water filter fabric in Geotextiles

When the amount is more than $1,000. you can place the order by Alibaba directly.

We do top quality nylon mesh. test every meter and guarantee thread diameter

All the mesh are food grade

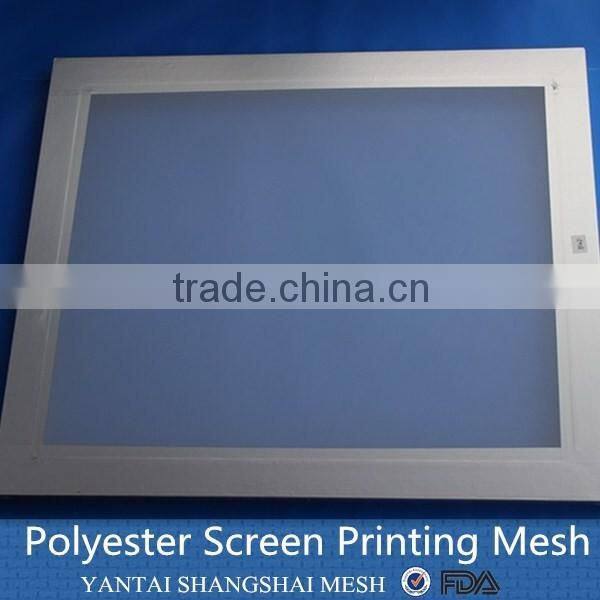

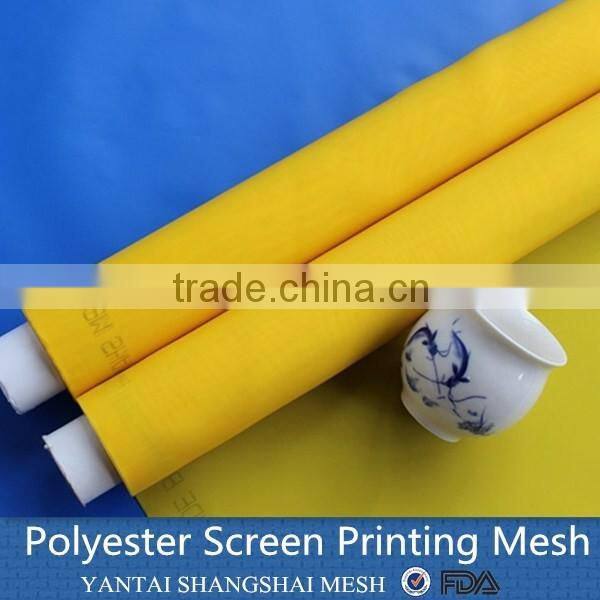

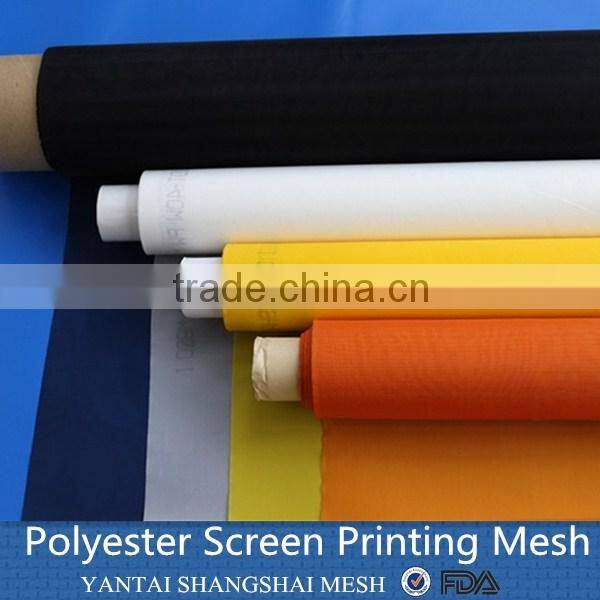

Polyester mesh:

Material	100% polyester
Weave	Plain
Mesh Count	18-420mesh/inch(7-165T)
Thread Diameter	31-350um
Mesh Opening	25-1100um
Width	1150mm,1270mm,1580mm, 1650mm,2600mm,3200mm,3650mm(Max)
Color	White, Yellow, Orange, Black
size, shape, packing can be customized

Features:

1.smooth surface, good ink permeability

2.good abrasion resistance

3.high flexibility and easy cleaning

4.long service life

Techincal specifications of nylon mesh:

Spcification(/cm)	Mesh count(mesh/inch)	Thread Dimeter(um)	Mesh opening(um)	Aperture ratio(%)	Thickness(um)	Amount of theoretical ink(cm³/m2)
4	10	550	1931	60	1100	251
5	13	500	1500	56	1000	308
6	15	400	1267	58	840	228
7	18	350	1079	57	640	209
8	20	350	900	52	645	232
9	24	200	911	67	370	92
9	24	250	861	60	460	145
9	24	300	811	53	570	205
10	25	250	750	56	530	148
12	30	300	533	41	495	256
14	35	200	514	52	380	135
16	40	200	425	46	400	155
16	40	250	375	36	420	240
17	42	200	388	44	380	160
18	45	220	366	37	400	207
20	50	200	300	36	375	190
24	60	150	267	41	305	130
28	70	150	207	34	278	150
30	76	120	213	41	230	105
32	80	100	213	46	240	77
36	90	100	178	41	195	86
40	100	100	150	36	192	95
44	110	100	127	31	175	105
48	120	80	128	38	150	73
56	142	60	120	44	110	48
59	150	60	110	42	98	50
64	163	60	96	38	120	55
72	183	50	89	41	90	44
80	203	50	75	36	93	48
88	224	40	74	42	65	34
96	244	40	64	38	76	37
100	254	40	60	36	78	39
104	264	40	56	34	79	40
120	305	40	43	27	80	46
130	330	40	34	20	85	29
140	355	38	33	21	85	28

Remark:The above are theoretic data for reference only.

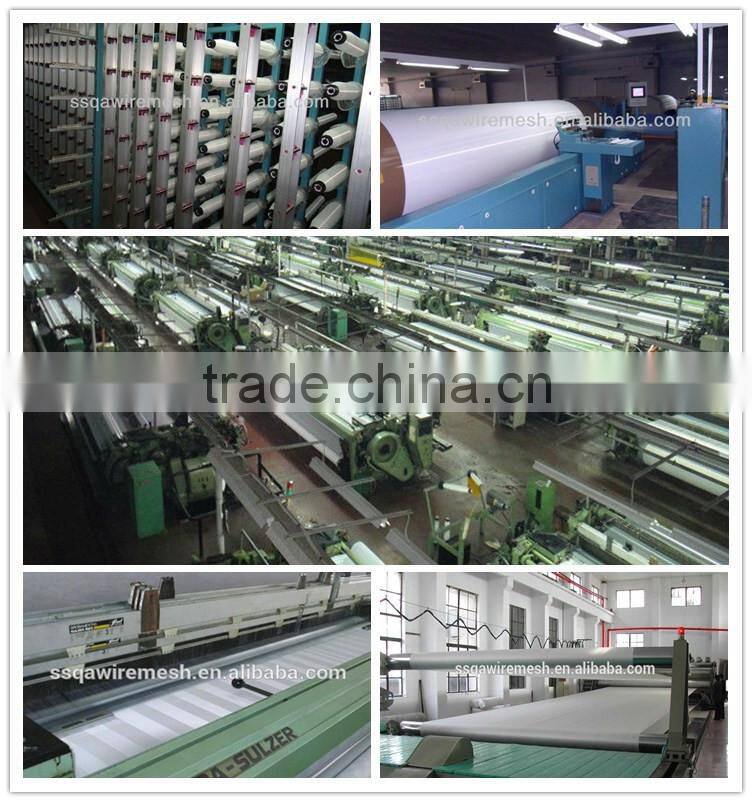

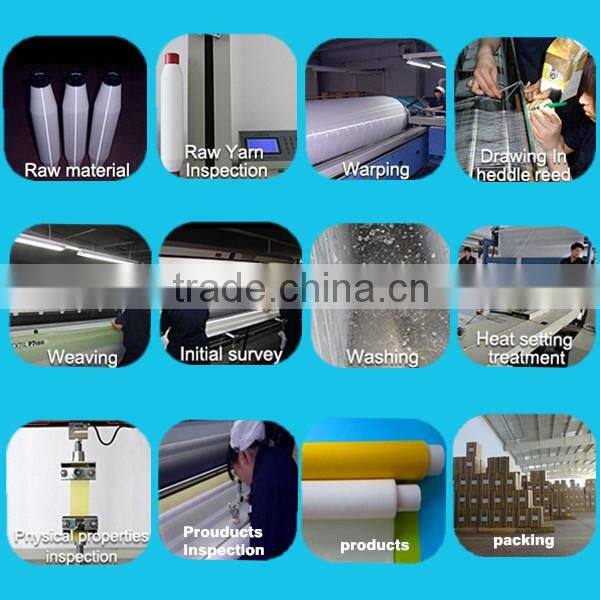

Production Process

Applications

Top-class Machines

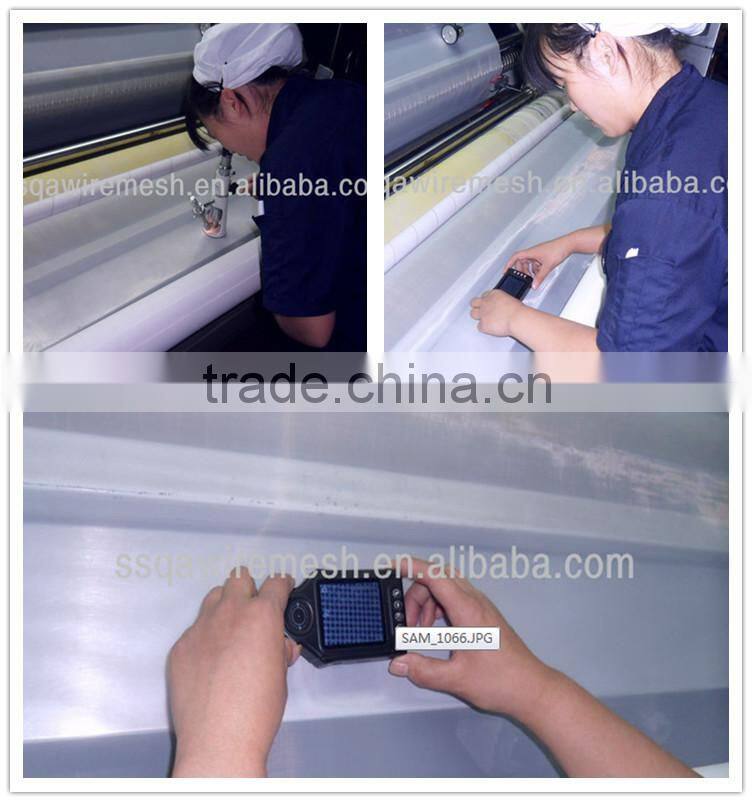

Quality Assurance

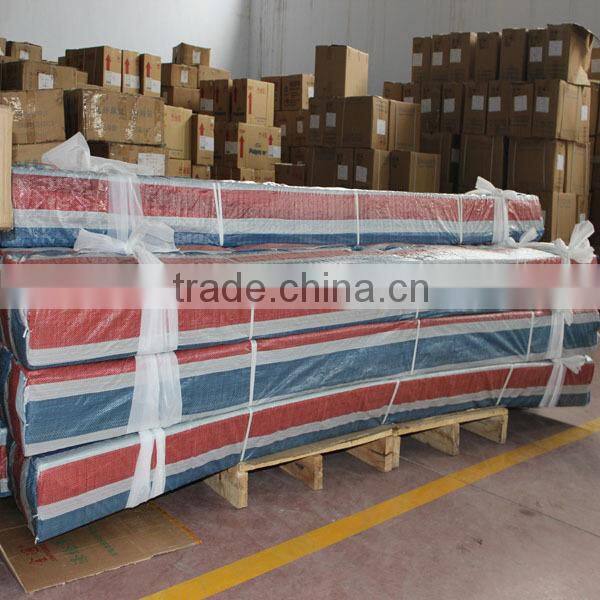

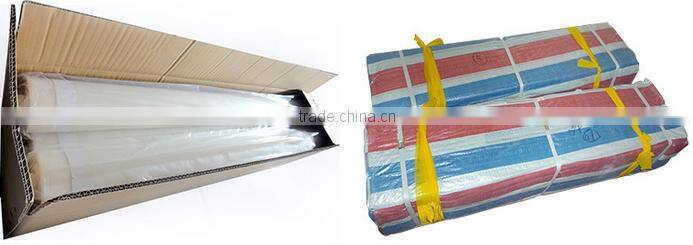

Packing

1.30-70m/roll in PVC bag

2.2-8 rolls per carton
3.waterproof bags outside
4.package belt strengthen

Delivery Ways
