Home > Products > Guide rail type hydraulic lift > Hydraulic Lift Platofrm Elevator Guide Rail

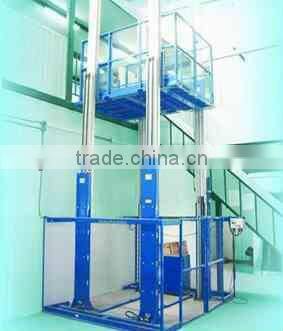

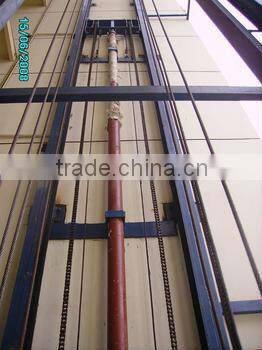

Hydraulic Lift Platofrm Elevator Guide Rail
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Jinding | |
| Model Number | SJD | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 1.5-4 kw | |
| Rated Loading Capacity | 100-10000 kg | Min. Lifting Height | 0.25 m | |
| Max. Lifting Height | 20 m | Table Size | according to your requiement | |
| Overall Dimensions | according to your requiement | Weight | according to your requiement |
Product Description
Specifications
This type have one . double . four columnsThis moving steady , this simplicity of operator is reliable
product profile:
Guide rail type hydraulic lift platform is a kind of non scissor hydraulic lift platform, used for two, three industrial workshop, restaurant, wine shop floor goods between the transmission, because the minimum height of only 150-300 mm, the most suitable for the excavation of the pit cannot industrial occasions, also need not the upper lifting point, with various forms (simple columnar double column, columns, four) action smooth, easy to operate, reliable, hydraulic, electric appliance variety of protection, let the transmission between floor economic, relaxed.
[technology parameters]
model
| rated load (kg) | vertical travel (mm) | minimum altitude (mm) | floor size (mm x mm) | POWER (KW) |
| SJD0.1-4.3 | 200 | 4300 | 104 | 800*700 | 1.5 |
| SJD0.5-4.0 | 500 | 4000 | 150 | 1600*1200 | 1.5 |
| SJD0.5-4.9 | 500 | 4900 | 60 | 1830*1145 | 1.5 |
| SJD0.6-2.2 | 600 | 2265 | 150 | 1200*1000 | 1.5 |
| SJD0.6-4.8 | 600 | 4800 | 250 | 1500*1400 | 1.5 |
| SJD0.6-5.0 | 600 | 5000 | 150 | 1600*1200 | 1.5 |
| SJD0.65-3.5 | 650 | 3500 | 200 | 1200*1200 | 1.5 |
| SJD0.85-4.5 | 850 | 4500 | 250 | 1800*1400 | 1.5 |
| SJD1.0-2.8 | 1000 | 2800 | 250 | 1950*1500 | 1.5 |
| SJD1.0-4.2 | 1000 | 4200 | 250 | 1500*1600 | 1.5 |
| SJD1.0-7.8 | 1000 | 7800 | 250 | 1800*1400 | 1.5 |
| SJD1.5-3.0 | 1500 | 3000 | 250 | 1800*1550 | 3 |
| SJD1.5-3.0 | 1500 | 5000 | 250 | 1620*1520 | 3 |
Company introduction:
Jinan jinding hydraulic machinery Co., LTD is specialized in the production of various types of hydraulic pressure reducing mechanical enterprises, the main production hydraulic lift platform, storage five series 40 varieties products. According to the customer demand design and production of various purposes, different specifications of hydraulic lift machine.
