10 Tons Loading Electric Rail Guide Hydraulic Lift Platforms Elevating Machine
- Qingdao
- T/T
You May Like
-
Un-movable Chain Transmission Hydraulic Construction Building Lifting Equipment With Installation
-
Safety Stable Hydraulic Small Storehouse Elevating Equipment for Sale
-
Fixed Hydraulic Cargoes Elevation Platforms for Construction Works
-
Safety Stable Hydraulic Small Storehouse Elevating Equipment for Sale
-
Safety Hydraulic High Elevating Equipment With Rail Guiding
-
Jinding Machinery Supply Hydraulic Building Material Lifting Machine
Product Details
| Place of Origin | Shandong, China | Brand Name | Jinding | |
| Model Number | SJD |
Product Description
10 tons loading Electric rail guide hydraulic lift platforms elevating machine

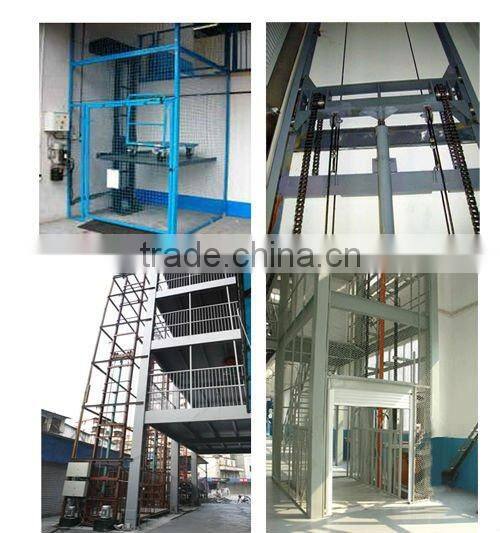

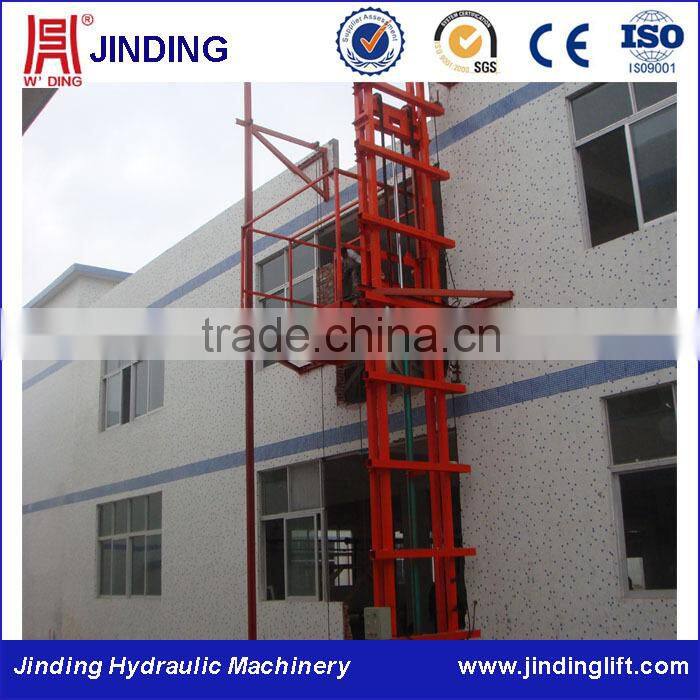

Guide rail type hydraulic lift platform is a kind of non scissor hydraulic lift platform, used for two, three industrial workshop, restaurant, wine shop floor goods between the transmission, because the minimum height of only 150-300 mm, the most suitable for the excavation of the pit cannot industrial occasions, also need not the upper lifting point, with various forms (simple columnar double column, columns, four) action smooth, easy to operate, reliable, hydraulic, electric appliance variety of protection, let the transmission between floor economic, relaxed.
Technology parameters:
model
| rated load (kg) | vertical travel (mm) | minimum altitude (mm) | floor size (mm x mm) | POWER (KW) |
| SJD0.1-4.3 | 200 | 4300 | 104 | 800*700 | 1.5 |
| SJD0.5-4.0 | 500 | 4000 | 150 | 1600*1200 | 1.5 |
| SJD0.5-4.9 | 500 | 4900 | 60 | 1830*1145 | 1.5 |
| SJD0.6-2.2 | 600 | 2265 | 150 | 1200*1000 | 1.5 |
| SJD0.6-4.8 | 600 | 4800 | 250 | 1500*1400 | 1.5 |
| SJD0.6-5.0 | 600 | 5000 | 150 | 1600*1200 | 1.5 |
| SJD0.65-3.5 | 650 | 3500 | 200 | 1200*1200 | 1.5 |
| SJD0.85-4.5 | 850 | 4500 | 250 | 1800*1400 | 1.5 |
| SJD1.0-2.8 | 1000 | 2800 | 250 | 1950*1500 | 1.5 |
| SJD1.0-4.2 | 1000 | 4200 | 250 | 1500*1600 | 1.5 |
| SJD1.0-7.8 | 1000 | 7800 | 250 | 1800*1400 | 1.5 |
| SJD1.5-3.0 | 1500 | 3000 | 250 | 1800*1550 | 3 |
| SJD1.5-3.0 | 1500 | 5000 | 250 | 1620*1520 | 3 |
Safety:
1. Control Device:Calling box (installed on the wall nearby) and remote controller(Extra optional)
2.Emergency Stop:The lifting and lowering process can be stopped immediately by
pressing the emergency button.
3. Safety Interlock: Lock the platform when it is out of control
4.Emergency lowering:The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
5. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.
6. The machine equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.
Service:
We also supply spare parts and supply technical supporting all the time. (Spare parts: control button, travel switch, Oil cylinder seals and the wrench etc.)
